EB Compiler SDK User Guide

1. Overview

1.1 Core Concepts

The EB Compiler SDK is an event-driven framework for IoT data collection and transmission. Three principles underpin it:

• Event-driven architecture: all operations are triggered by events.
• Periodic execution: both query events and uplink events run on configurable cycles.
• Data stream processing: sub-device data is acquired through query events, optionally processed, and transmitted to the cloud via uplink events.

1.2 Event Types

Event	Description
QueryEvent	Periodically sends a command to a sub-device via UART/RS-485 and waits for a response.
UpAfterQueryEvent	Like QueryEvent, but uploads the raw response directly — no copy/convert rules needed.
LoraUpEvent	Periodically transmits the assembled txBuffer to the cloud via LoRaWAN.

---

2. Environment Setup & Compilation

2.1 Prerequisites

1. Install Node.js (LTS recommended).
2. Install ts-node globally:

npm install -g ts-node

3. In the EBSDK project root, install dependencies:

npm install

2.2 Running a Compile

Place your TypeScript file under the project/ folder (e.g. project/myMeter/myMeter.ts), then run:

ts-node project/myMeter/myMeter.ts

2.3 Output Files

Four files are generated in project/myMeter/release/:

File	Description
myMeter.bin	Raw compiled binary.
myMeter.json	Compilation intermediate (for debugging).
myMeter.ota	OTA upgrade descriptor.
myMeter.obin	Final upgrade package — this is the file to upload.

---

3. OTA Config (getOtaConfig)

The entry file must call getOtaConfig to describe the hardware and serial-port environment.

import { CheckbitEnum, getOtaConfig } from "@EBSDK/otaConfig";

let otaConfig = getOtaConfig({
    SwVersion: 31,
    BaudRate: 9600,
    StopBits: 1,
    DataBits: 8,
    Checkbit: CheckbitEnum.NONE,
    ConfirmDuty: 60,
    Battery: true,
    BzType: 101,   // required, 2 bytes
    BzVersion: 2,  // required, 1 byte
});

3.1 Field Reference

Field	Type	Required	Description
SwVersion	Number	Yes	EB virtual machine firmware version. Current value is 31. Must match the actual device firmware; mismatch causes upgrade failure.
BaudRate	Number	Yes	UART/RS-485 baud rate. Must be an integer multiple of 1200 (e.g. 9600, 19200).
StopBits	Number	Yes	Stop bits (1 or 2).
DataBits	Number	Yes	Data bits (typically 8).
Checkbit	CheckbitEnum	Yes	Parity: NONE, ODD, or EVEN.
ConfirmDuty	Number	Yes	Confirmed-packet duty cycle. A value of 60 means 1 confirmed packet every 60 uplinks.
Battery	Boolean	Yes	true = battery-powered → Class A mode. false = always-on → Class C mode.
BzType	Number	Yes	Business type identifier (2 bytes). Identifies the meter/device type.
BzVersion	Number	Yes	Business version (1 byte). At least one of BzType / BzVersion must differ from the current device firmware to trigger an upgrade.
HwType	HwTypeEnum	No	Hardware model (e.g. OM422=40, OM822=51).
HwVersion	Number	No	Hardware version.
FuotaVersion	Number	No	FUOTA version number.

For the full APP-parameter reference (TransparentBit, UpRawAfterQuery, port configs, etc.) see EB APP Parameters.

---

4. System Buffers

The following five buffers are managed by EBModel and available anywhere in user code as EBModel.APP, EBModel.TEMPLATE, etc.

Buffer	Size	Permission	Description
APP	255 B	Read-only	Application parameters. Bytes 0–69 are system-managed; bytes 70–200 are user-open (see EB APP Parameters).
APP_STATUS	32 B	Read-only	System status flags (query timeout, etc.).
SENSOR_DATA	128 B	Read-only	Sensor snapshot used by COV comparisons. Written by setupCov.
TEMPLATE	128 B	Read/Write	User scratchpad — free to use for intermediate calculations.
DEVICE_STATUS	16 B	Read-only	Device status: battery level (byte 3), LoRa RSSI/SNR, etc.

4.1 Common Status Reads

// Query timeout flag: bit1 of APP_STATUS[2]
const isQueryTimeOut = EBModel.APP_STATUS.readUint8(2).bitwiseAnd(2).rightShift(1);

// Battery voltage: DEVICE_STATUS[3]
const batteryVoltage = EBModel.DEVICE_STATUS.readUint8(3);

---

5. Event-Specific Buffers

Buffer	Belongs to	Description
cmdBuffer	QueryEvent	Fixed-size command frame sent to the sub-device.
ackBuffer	QueryEvent	Receive buffer for the sub-device response. Must be ≥ actual response length.
txBuffer	LoraUpEvent	Uplink payload sent over LoRaWAN.

---

6. Buffer Operations

All buffer read/write methods return a CalcData or CopyData object that supports chaining.

Rule: copy (CopyRule) and read/write (CvtRule) are two distinct rule types and cannot be chained with each other. Within one query event, all copy operations must come before any read/write operations. Maximum 15 CvtRules per query event; maximum 6 chained operators per CvtRule.

6.1 Copy

targetBuffer.copy(sourceBuffer, sourceOffset, byteLength, targetOffset)

Example — copy 72 bytes from ackBuffer starting at offset 3 into txBuffer at offset 3:

quEvent1.pushEBData(upEvent1.txBuffer.copy(quEvent1.ackBuffer, 3, 72, 3));

6.2 Integer Read/Write

Unsigned integers

Method	Byte Order	Width
readUintLE(offset, byteLength) / writeUintLE(value, offset, byteLength)	Little-endian	Dynamic
readUintBE(offset, byteLength) / writeUintBE(value, offset, byteLength)	Big-endian	Dynamic
readUint8(offset) / writeUint8(value, offset)	—	8-bit
readUint16LE(offset) / writeUint16LE(value, offset)	Little-endian	16-bit
readUint16BE(offset) / writeUint16BE(value, offset)	Big-endian	16-bit
readUint32LE(offset) / writeUint32LE(value, offset)	Little-endian	32-bit
readUint32BE(offset) / writeUint32BE(value, offset)	Big-endian	32-bit

Signed integers: same names, replace Uint with Int.

6.3 Floating-Point Read/Write

Method	Byte Order	Precision
readFloatLE(offset) / writeFloatLE(value, offset)	Little-endian	32-bit
readFloatBE(offset) / writeFloatBE(value, offset)	Big-endian	32-bit
readDoubleLE(offset) / writeDoubleLE(value, offset)	Little-endian	64-bit
readDoubleBE(offset) / writeDoubleBE(value, offset)	Big-endian	64-bit

6.4 String Read/Write

Method	Format
readAscii(offset, length) / writeAscii(value, offset, length)	ASCII
readXaasc(offset, length) / writeXaasc(value, offset, length)	XAASC
readXaf(offset, length) / writeXaf(value, offset, length)	XAF

6.5 BCD

Method	Description
readBcd(offset, length)	Read BCD-encoded value
writeBcd(value, offset, length)	Write BCD-encoded value

6.6 Calculation Operators (CvtRule chaining)

Operator	Description
multiply(n)	Multiply
divide(n)	Divide
add(n)	Add
minus(n)	Subtract
bitwiseAnd(n)	Bitwise AND
bitwiseOr(n)	Bitwise OR
bitwiseXOR(n)	Bitwise XOR
power(n)	Exponentiation
not()	Bitwise NOT
leftShift(n)	Left shift
rightShift(n)	Right shift
round()	Round to nearest integer
ceil()	Round up
floor()	Round down
reverse()	Reverse byte order
absolute()	Absolute value

Example — read a 16-bit LE integer from ackBuffer[2], multiply by 10, write to txBuffer[3]:

quEvent1.pushEBData(
    upEvent1.txBuffer.writeUint16LE(
        quEvent1.ackBuffer.readUint16LE(2).multiply(10), 3
    )
);

---

7. Query Events

7.1 QueryEvent

Creating

let cmdBuffer1 = Buffer.from("0F0410 0A0024D5FD".replaceAll(" ", ""), "hex");
let ackBuffer1 = Buffer.alloc(77);

let quEvent1 = new QueryEvent("quEvent1", {
    cmdBuffer: cmdBuffer1,
    ackBuffer: ackBuffer1,
}).setPeriod(300);

MulDev_NewGrpStart: true marks this query event as the start of a new device group (multi-device mode).

setPeriod(seconds)

Sets the periodic execution interval in seconds.

quEvent1.setPeriod(300);  // every 5 minutes

setPeriodFromApp(appAddress)

Reads the period at runtime from a 4-byte little-endian slot in the APP segment, allowing dynamic adjustment via RPC without recompiling.

quEvent1.setPeriodFromApp(70);  // period stored at APP[70..73]

setIfSelect(IfSelectEnum.NO_QUERY)

Skips the serial query and response — only copy/convert operations registered with ExprCondition.PRE or ExprCondition.NONE will run.

quEvent1.setIfSelect(IfSelectEnum.NO_QUERY);

setQueryCrc — Checksum for the outgoing command

See §9 for all CRC modes.

quEvent1.setQueryCrc({
    Mode: CrcMode.CRC16,
    placeIndex: -2,        // last 2 bytes of cmdBuffer
    LittleEndian: true,
    crcCheckRange: { startIndex: 0, endIndex: cmdBuffer1.length - 3 }
});

setAckCrc — Checksum verification of the received response

quEvent1.setAckCrc({
    Mode: CrcMode.CRC16,
    placeIndex: -2,
    LittleEndian: true,
    crcCheckRange: { startIndex: 0, endIndex: ackBuffer1.length - 3 }
});

addAckCheckRule(index, expectedValue)

Validates a specific byte in the received response. Multiple rules can be added.

quEvent1.addAckCheckRule(0, 0x0F);           // first byte must be 0x0F
quEvent1.addAckCheckRule(1, cmdBuffer1[1]);   // function code echo

pushEBData(operation, options?)

Registers a copy or convert rule on the event's action list.

// Copy 4 bytes from APP[31] into cmdBuffer[10] BEFORE sending (PRE)
quEvent1.pushEBData(
    quEvent1.cmdBuffer.copy(EBModel.APP, 31, 1, 10),
    { condition: ExprCondition.PRE }
);

// Write ackBuffer[2..3] as Int16LE into txBuffer[3] when reply is received (ONTIME)
quEvent1.pushEBData(
    upEvent1.txBuffer.writeInt16LE(quEvent1.ackBuffer.readInt16LE(2), 3),
    { condition: ExprCondition.ONTIME }
);

setupCov — Change of Value

setupCov implements the COV (Change of Value) function. EB reads the sub-device value, compares it against the previously uploaded snapshot in SENSOR_DATA, and only triggers an uplink when the absolute difference exceeds the threshold stored in the APP buffer. This reduces power consumption and air-time usage.

let sensorDataIndex = quEvent1.setupCov({
    ackBufferIndex: 0,           // read position in ackBuffer
    up: {
        event: upEvent1,         // uplink event to trigger
        txBufferIndex: 2         // write position in txBuffer
    },
    binaryDataType: "Uint16LE",              // data type of the value
    appBufferCovThresholdIndex: 110,         // APP address of the COV threshold
    txCovResultIndex: 3                      // txBuffer byte to record COV status
});

Return value: the index in SENSOR_DATA where the current snapshot is stored.

7.2 UpAfterQueryEvent

Identical to QueryEvent in construction but uploads the raw ackBuffer directly after a successful query — no pushEBData rules are needed.

let quEvent1 = new UpAfterQueryEvent("quEvent1", {
    cmdBuffer: cmdBuffer1,
    ackBuffer: ackBuffer1,
}).setPeriod(300);

7.3 Query Execution Flow

1. (Optional) Execute ExprCondition.PRE copy rules (fill dynamic fields into cmdBuffer).
2. Calculate and place the query checksum (if configured).
3. Send cmdBuffer to sub-device; retry up to 2 times on timeout.
4. Wait for response into ackBuffer. On timeout: skip to step 9.
5. Verify response checksum (if setAckCrc configured).
6. Validate fixed bytes via addAckCheckRule rules.
7. (If UpAfterQueryEvent) upload raw ackBuffer and stop.
8. Execute ExprCondition.ONTIME copy rules.
9. (On timeout) Execute ExprCondition.TIMEOUT copy rules.
10. Execute CvtRules (read/write/calculate). Optionally trigger uplink via ActAfterCvt.

---

8. Uplink Event (LoraUpEvent)

8.1 Creating

let txBuffer1 = Buffer.alloc(20);
txBuffer1[0] = 0x01;  // data identifier

let upEvent1 = new LoraUpEvent("upEvent1", {
    txBuffer: txBuffer1,
    txPort: 12
}).setPeriod(86400 * 365);  // effectively "never auto-uplink; driven by triggers"

8.2 Registering Copy/Calc Rules

Rules registered on a LoraUpEvent run immediately before the uplink is sent.

upEvent1.pushEBData(
    upEvent1.txBuffer.copy(EBModel.TEMPLATE, 3, 4, 3),
    { condition: ExprCondition.ONTIME }
);

upEvent1.pushEBData(
    upEvent1.txBuffer.writeUint8(isQueryTimeOut, 1),
    { condition: ExprCondition.ONTIME, ActAfterCvt: ActionAfertExpr.NONE }
);

---

9. Operation Conditions

9.1 ExprCondition — when a rule executes

Value	Description
ExprCondition.NONE	Always executes.
ExprCondition.ONTIME	Executes only when the sub-device replied successfully.
ExprCondition.TIMEOUT	Executes only when the query timed out.
ExprCondition.PRE	Executes before the query is sent (for filling cmdBuffer).

9.2 ActAfterCvt — action after a CvtRule

The target buffer of the write operation must be the uplink event's txBuffer for this to take effect.

Value	Description
ActionAfertExpr.NONE	No action after calculation (default).
ActionAfertExpr.ALWAYS	Always trigger an uplink after this rule.
ActionAfertExpr.UP_TO_RESULT	Trigger uplink only if the calculation result > 0.
ActionAfertExpr.ALWAYS_REBOOT	Reboot the device after the calculation completes.

9.3 Repeat — loop a CvtRule

Repeat repeats the same read/write operation N times, advancing the source offset by the read width and the destination offset by the write width on each iteration.

// Read 3 × 7-byte BCD values from ackBuffer starting at offset 2,
// write them into txBuffer starting at offset 3.
quEvent1.pushEBData(
    upEvent1.txBuffer.writeUintLE(quEvent1.ackBuffer.readBcd(2, 7), 3, 7),
    { Repeat: 3 }
);
// Equivalent to:
//   Iteration 1: read ackBuffer[2..8]  → txBuffer[3..9]
//   Iteration 2: read ackBuffer[9..15] → txBuffer[10..16]
//   Iteration 3: read ackBuffer[16..22]→ txBuffer[17..23]

---

10. Checksum Configuration

10.1 CRC16 (Modbus standard)

quEvent1.setQueryCrc({
    Mode: CrcMode.CRC16,
    Poly: "a001",             // default 0xa001 (Modbus); omit to use default
    placeIndex: -2,           // place checksum at last 2 bytes
    LittleEndian: true,
    crcCheckRange: { startIndex: 0, endIndex: cmdBuffer1.length - 3 }
});

10.2 CCITT16

quEvent1.setQueryCrc({
    Mode: CrcMode.CCITT16,
    Poly: "1021",             // default 0x1021; omit to use default
    placeIndex: -2,
    LittleEndian: true,
    crcCheckRange: { startIndex: 0, endIndex: cmdBuffer1.length - 3 }
});

10.3 SUM (byte checksum)

quEvent1.setQueryCrc({
    Mode: CrcMode.SUM,
    CrcLen: 1,                // checksum is 1 byte
    placeIndex: -2,
    LittleEndian: true,
    crcCheckRange: { startIndex: 0, endIndex: -2 }
});

placeIndex accepts negative values: -2 means the second-to-last byte of the buffer.

---

11. Complete Example

import { Buffer } from "buffer";
import { buildOtaFile } from "@EBSDK/run";
import {
    ActionAfertExpr, CrcMode, EBModel, ExprCondition,
    LoraUpEvent, QueryEvent
} from "@EBSDK/EBCompiler/all_variable";
import { CheckbitEnum, getOtaConfig } from "@EBSDK/otaConfig";

let otaConfig = getOtaConfig({
    SwVersion: 31,
    BaudRate: 9600,
    StopBits: 1,
    DataBits: 8,
    Checkbit: CheckbitEnum.NONE,
    Battery: true,
    ConfirmDuty: 60,
    BzType: 101,
    BzVersion: 2,
});

const MODBUS_TT = (ebModel: EBModel) => {
    // --- Query setup ---
    let cmdBuffer1 = Buffer.from("12345678b1b2b3b4b5b6b7b8b9".replaceAll(" ", ""), "hex");
    let ackBuffer1 = Buffer.from("a1a2a3a4a5a6a7a8a9".replaceAll(" ", ""), "hex");

    let quEvent1 = new QueryEvent("quEvent1", {
        cmdBuffer: cmdBuffer1,
        ackBuffer: ackBuffer1,
        MulDev_NewGrpStart: true
    }).setPeriod(300);

    // Checksum on outgoing command (SUM, 1 byte at last position)
    quEvent1.setQueryCrc({
        Mode: CrcMode.SUM,
        CrcLen: 1,
        placeIndex: -2,
        LittleEndian: true,
        crcCheckRange: { startIndex: 0, endIndex: -2 }
    });

    // Validate first and last byte of ACK
    quEvent1.addAckCheckRule(0, 0xa1);
    quEvent1.addAckCheckRule(ackBuffer1.length - 1, 0xa9);

    // --- Uplink setup ---
    let upEvent1 = new LoraUpEvent("upEvent1", {
        txBuffer: Buffer.from("c1c2c3c4c5c6c7c8c9c0d1d2d3d4d5d6d7d8d9".replaceAll(" ", ""), "hex"),
        txPort: 12
    }).setPeriod(86400 * 365);

    // Read query timeout flag from APP_STATUS into txBuffer[1]
    const isQueryTimeOut = EBModel.APP_STATUS.readUint8(2).bitwiseAnd(2).rightShift(1);
    quEvent1.pushEBData(upEvent1.txBuffer.writeUint8(isQueryTimeOut, 1));

    // Copy battery voltage from APP[31] into txBuffer[10]
    quEvent1.pushEBData(
        upEvent1.txBuffer.copy(EBModel.APP, 31, 1, 10),
        { condition: ExprCondition.ONTIME }
    );

    // Read Int16LE from ackBuffer[2] → txBuffer[3]; trigger uplink when result > 0
    quEvent1.pushEBData(
        upEvent1.txBuffer.writeInt16LE(quEvent1.ackBuffer.readInt16LE(2), 3),
        { condition: ExprCondition.ONTIME }
    );

    quEvent1.pushEBData(
        upEvent1.txBuffer.writeUint16LE(quEvent1.ackBuffer.readUint16LE(11), 2),
        { condition: ExprCondition.ONTIME, ActAfterCvt: ActionAfertExpr.UP_TO_RESULT }
    );

    return JSON.stringify(ebModel, null, 2);
};

buildOtaFile(__filename, otaConfig, MODBUS_TT);

---

12. Firmware Download

12.1 obin File Format

The .obin file is a JSON file. The valid upgrade packets are in bin_dic, ordered by index (0-based). Other fields configure the ThinkLink, UART, and SW upgrade modes.

{
  "otaFile": {
    "bin_dic": {
      "0": { "index": 0, "buffer": "AgADAGQDWQQAAAA=", "bufferstring": "02 00 03 00 ..." },
      "1": { "index": 1, "buffer": "...", "bufferstring": "..." }
    },
    "otaMode": "gw",
    "otaPort": 201,
    "packets": 3,
    "isClassA": true
  }
}

12.2 Uploading via ThinkLink

1. Log in to ThinkLink → MAINTENANCE → UPGRADE.

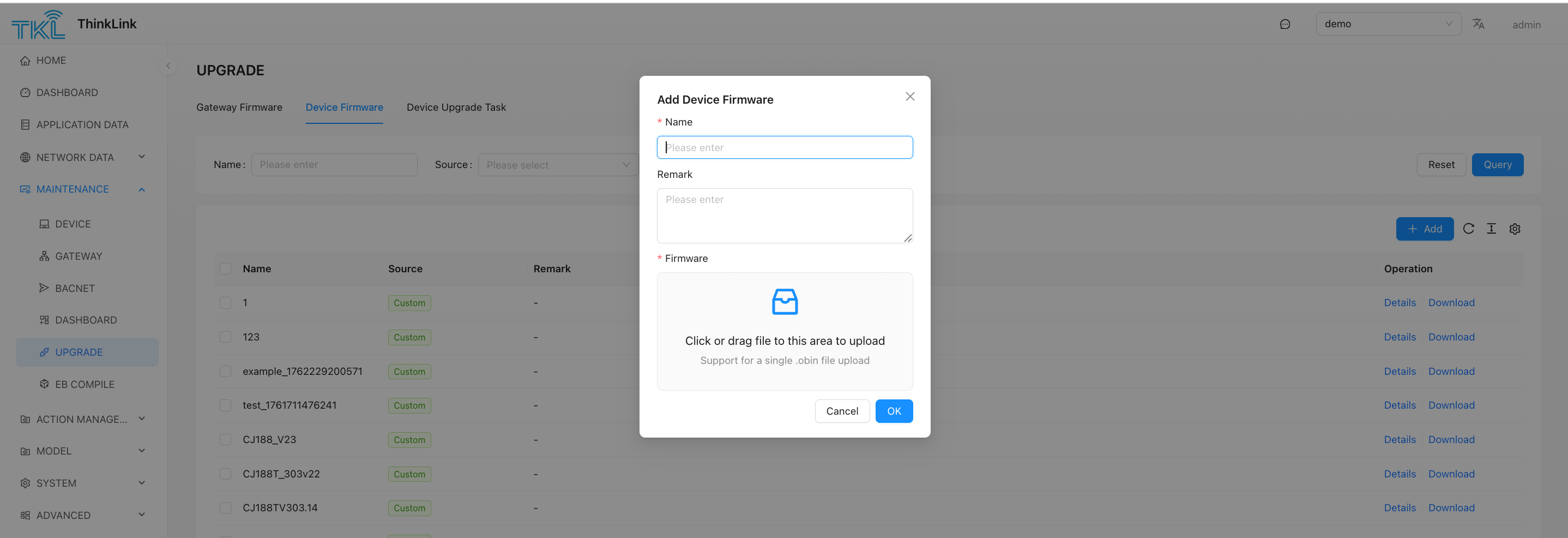

2. Under Device Firmware, click Add and upload the .obin file.

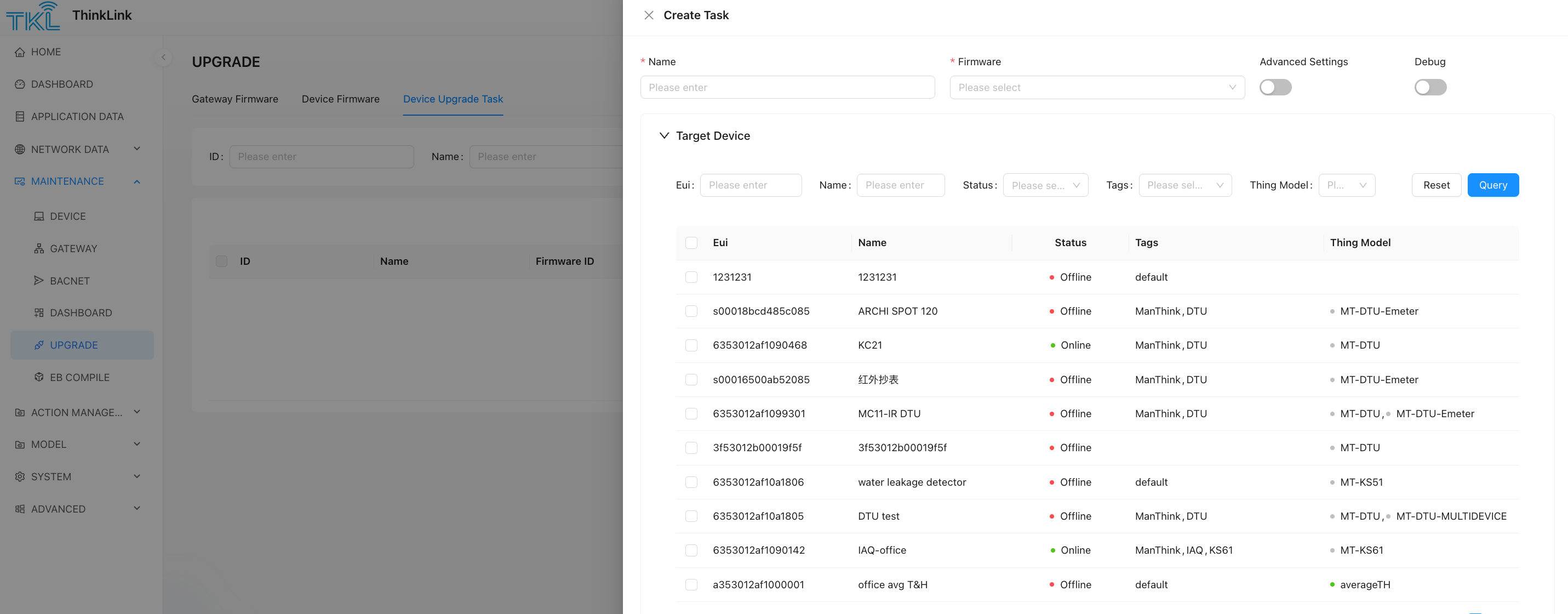

3. Create an upgrade task and select the target devices.

12.3 Upgrade Notes

• Set Max Retry Times to 1 and Packet Transmission Count to 1.
• Class A devices: an uplink from the device must occur first to open the RX window before each downlink packet can be delivered.
• Class C devices: use UNCONFIRMED packets. If the NS lacks automatic queueing, control timing manually based on over-the-air time. To improve reliability, send each packet 2–3 times (duplicates are filtered by EB).
• After a successful upgrade, the device resets automatically.
• BzType and BzVersion in the compiled firmware must differ from the current device values; otherwise EB considers the firmware already installed and skips the upgrade.
• Ensure Battery: true is set for battery-powered devices; omitting it causes the device to run in Class C mode and drains the battery.
