1. Thing Model

The Thing Model is the core module in the ThinkLink platform for defining device functionality and data structures. Through the Thing Model, raw data from the LoRaWAN Network Server (NS) or other protocol sources can be parsed into standardized application-layer data (such as telemetry data and attribute information), and visualized in tables, charts, or dashboards.

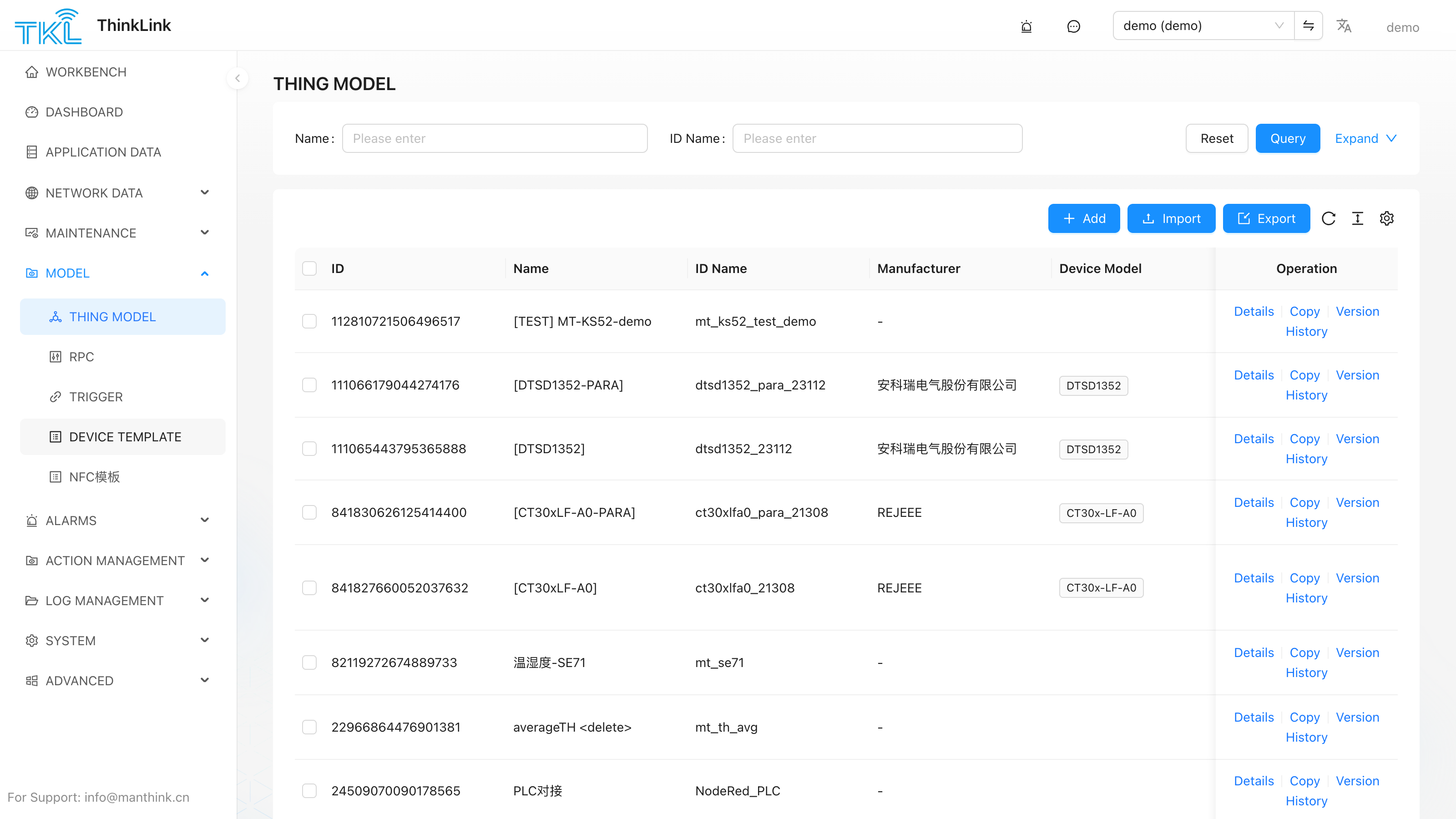

1.1. Create a Thing Model

When creating a new Thing Model, you must enter a unique name as its identifier. This name cannot be repeated across the system. It is recommended to name it based on the device type or function (for example: TempHumidity_Sensor_ModelA).

After creation, configure a parsing script to decode and map incoming uplink data.

1.2. Parse Script

The parsing script converts raw data sent from an external platform to ThinkLink into structured telemetry data (telemetry_data) and shared attributes (shared_attrs), for downstream processing and visualization.

1.2.1. Sandbox Environment & Constraints

The parsing script runs inside a vm2 sandbox, fully isolated from the Node.js host process. The following constraints are enforced at runtime — violating them will throw an exception or silently drop the parse result.

Runtime limits

Constraint	Value	Details
Execution timeout	1000 ms	The script is killed after 1 second; the uplink is dropped for this parse cycle.
eval	❌ Disabled	Dynamic code execution via eval is blocked.
WebAssembly	❌ Disabled	Loading or executing .wasm modules is blocked.
async / await	❌ Not supported	The parse script is synchronous; asynchronous operations are not available.
require / import	❌ Not supported	No Node.js built-in modules or third-party packages can be imported.
process, path, fs, etc.	❌ Not available	These Node.js globals are not injected; referencing them throws ReferenceError.
setTimeout / setInterval	❌ Not available	Timer globals are not present in the sandbox.
console	❌ Not available	Use the built-in Thing Model log feature for debugging instead.

Buffer method restrictions

The sandbox injects a restricted Buffer object (SafeBuffer). Only the following static methods are available:

Allowed method	Description
Buffer.alloc(size)	Allocate a zero-filled Buffer
Buffer.from(...)	Create a Buffer from a string, array, or ArrayBuffer
Buffer.isBuffer(obj)	Check whether a value is a Buffer
Buffer.byteLength(str, enc)	Compute byte length
Buffer.compare(a, b)	Compare two Buffers
Buffer.concat(list, totalLen?)	Concatenate multiple Buffers

Buffer.allocUnsafe() and Buffer.allocUnsafeSlow() are explicitly blocked. Instance read/write methods (readUInt8, writeUInt16LE, etc.) work normally.

All available sandbox globals

The table below lists every name that is available inside the script (i.e., everything the platform injects into the sandbox):

Name	Source	Notes
device	Platform-injected, read-only	Device object (vm.freeze); property assignments are silently ignored.
msg	Platform-injected	Raw uplink message for this cycle.
noticeAttrs	Platform-injected	Attribute-change flags that triggered this parse.
thingModelId	Platform-injected	ID of the current Thing Model.
org_params	Platform-injected, read-only	Organization-level environment variables (vm.freeze).
subDevices	Platform-injected, read-only	Sub-device cache map for the parent device (vm.freeze).
env	Platform-injected, read-only	Environment variables declared by mounted plugins (advanced).
plugins	Platform-injected, read-only	Plugin instances mounted on this Thing Model (advanced).
Buffer	Platform-injected	Restricted SafeBuffer (see above).
BufferTKL / PayloadParser / MSparser / Utils / TriggerHelper / RPCHelper	tklHelper, read-only	Platform utility library (vm.freeze). See tklHelper.

Note: device and all tklHelper classes are injected via vm.freeze. Assigning to their properties inside the script will not throw but will have no effect and will not modify platform state. To write data back to the platform, use the script's return value.

1.2.2. Input Parameters

When the script is executed, the system automatically injects the following parameters:

Parameter	Type	Description
device	Object	The device object that received the message (frozen, read-only). Key properties — see device object properties below. Use device.telemetry_data[thingModelId] to read the previous telemetry snapshot. Access to non-existent properties returns undefined — use optional chaining (?.).
msg	Object	The raw packet from the LoRaWAN Application Server (AS). For MQTT-connected devices, this is the JSON message body.
thingModelId	String	The unique ID of the current Thing Model, used to access historical telemetry data for this model on the device.
noticeAttrs	Object	Indicates which attributes changed and triggered the notification event, useful for conditional logic.
org_params	Object	Organization-level (tenant-level) environment variables maintained under System Management → Server Configuration → Org Params. See Server Configuration §1.6.

Function signature:

function payload_parser(device, msg, thingModelId, noticeAttrs, org_params) {
    // ...
}

device object properties:

Property	Type	Description
eui	string	Device EUI (16-char hex, globally unique primary key).
name	string	Device name.
device_type	string	Device type: "NORMAL" (direct LoRaWAN/MQTT), "SUB_DEVICE" (auto-generated by parent), "VIRTUAL" (asset/aggregator).
data_from	string	Data source: "LoRaWAN" (via NS uplink) or "OTHER" (direct MQTT).
parent	string | null	Parent device EUI (SUB_DEVICE only).
online	boolean	Whether the device is currently online.
active_time	string	Timestamp of the last uplink (ISO 8601).
update_time	string	Timestamp of the last device record update (ISO 8601).
heart_period	number	Heartbeat detection period (seconds).
shared_attrs	object	Attributes synchronized bidirectionally with the device (e.g. config params, firmware info, calibration values).
server_attrs	object	Platform-side-only attributes (device cannot read). Used for alarm thresholds, linked EUIs, downlink records, etc.
mac_attrs	object	LoRaWAN MAC-layer attributes (band, ADR, etc.). Empty object for non-LoRaWAN devices.
telemetry_data	object	Latest telemetry snapshot per Thing Model, keyed by thingModelId. Use device.telemetry_data[thingModelId] to access.
thing_model	string[]	Mounted Thing Model ID array.
rpc	string[]	Mounted RPC model ID array.
trigger	string[]	Mounted Trigger model ID array.
tags	string[]	Device tag array, used for filtering and grouping.
tenant_code	string	Tenant identifier.
real_time_storage	boolean	Whether real-time history data storage is enabled.
location_id	string | null	Bound geographic location ID.
remark	string | null	Free-text remarks.

Note: device is injected via vm.freeze. Assignments to its properties inside the script have no effect. Accessing non-existent properties returns undefined — use optional chaining (?.) to avoid errors.

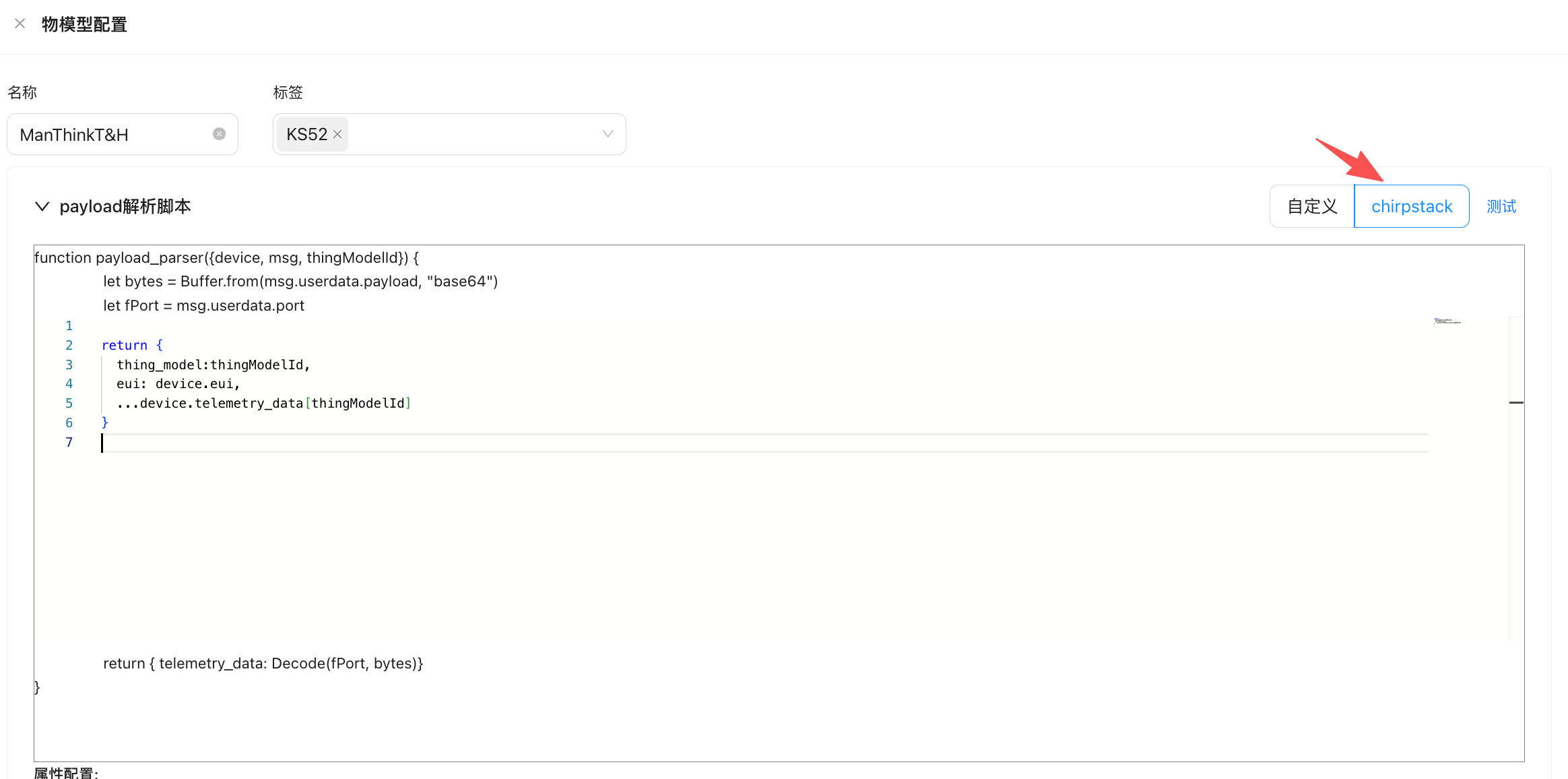

Tip: If you already have a parsing script written for ChirpStack, you can select ChirpStack Compatibility Mode. ThinkLink has adapted its interface to be compatible, so you can paste the original code and it will run without modification.

1.2.2. Reference Parsing Script

Below is a typical parsing script for a LoRaWAN temperature and humidity sensor. It handles binary payloads on port 11 with a fixed length of 15 bytes. Device configuration parameters (such as COV threshold and reporting interval) are sent and received on port 214, and are parsed into shared attributes.

let    payload = Buffer.from(msg?.userdata?.payload, "base64");
    let    port=msg?.userdata?.port || null;
    function parseSharedAttrs(payload) {
        if (port!=214||payload[0]!=0x2F) { return null}
        let shared_attrs = {};
        if (payload.length<5) { return null}
        shared_attrs.content = payload.toString('hex');
        let size=payload.length-4
        let regAddress=payload[2]
        for (let i=0; i<size; i++) {
            regAddress=payload[2]+i
            switch (regAddress) {
                case  58:
                    if  ( size<(2+i) ) { break }
                    shared_attrs.period_data = payload.readUInt16LE(4+i)
                    break;
                case 142:
                    if  ( size<(2+i) ) { break }
                    shared_attrs.period_measure = payload.readUInt16LE(4+i)
                    break;
                case 144:
                    if  ( size<(1+i) ) { break }
                    shared_attrs.cov_temperatrue = payload.readUInt8(4+i)*0.1
                    break;
                case 145:
                    if  ( size<(1+i) ) { break }
                    shared_attrs.cov_humidity = payload.readUInt8(4+i)*0.1
                    break;
                default: break
            }
        }
        if (Object.keys(shared_attrs).length == 0) {
            return null
        }
        return shared_attrs;
    }
    function parseTelemetry(payload){
        if (port!=11||payload[0]!=0x21||payload[1]!=0x07||payload[2]!=0x03||payload.length !=15){
            return null
        }
        let telemetry_data = {};
        telemetry_data.period_data =payload.readUInt16LE(5)
        telemetry_data.status ="normal"
        if ((payload[7]&0x01)!=0){  telemetry_data.status ="fault" }
        telemetry_data.temperatrue=Number(((payload.readUInt16LE(8)-1000)/10.00).toFixed(2))
        telemetry_data.humidity=Number((payload.readUInt16LE(10)/10.0).toFixed(2))
        let vbat=payload.readUInt8(12)
        telemetry_data.vbat=Number(((vbat*1.6)/254 +2.0).toFixed(2))
        telemetry_data.rssi=msg.gwrx[0].rssi
        telemetry_data.snr=msg.gwrx[0].lsnr
        return telemetry_data
    }
    let tdata=parseTelemetry(payload)
    let sdata=parseSharedAttrs(payload)
    if (tdata?.period_data!=null){
        if (sdata===null) {sdata={}}
        sdata.period_data = tdata.period_data
    }
    return {
            sub_device:null,
            telemetry_data: tdata,
            server_attrs: null,
            shared_attrs: sdata
    }

1.2.3. Key Parameter Reference

1.2.3.1. device – Device Object

Represents the device instance that received the message, including all its known states and attributes:

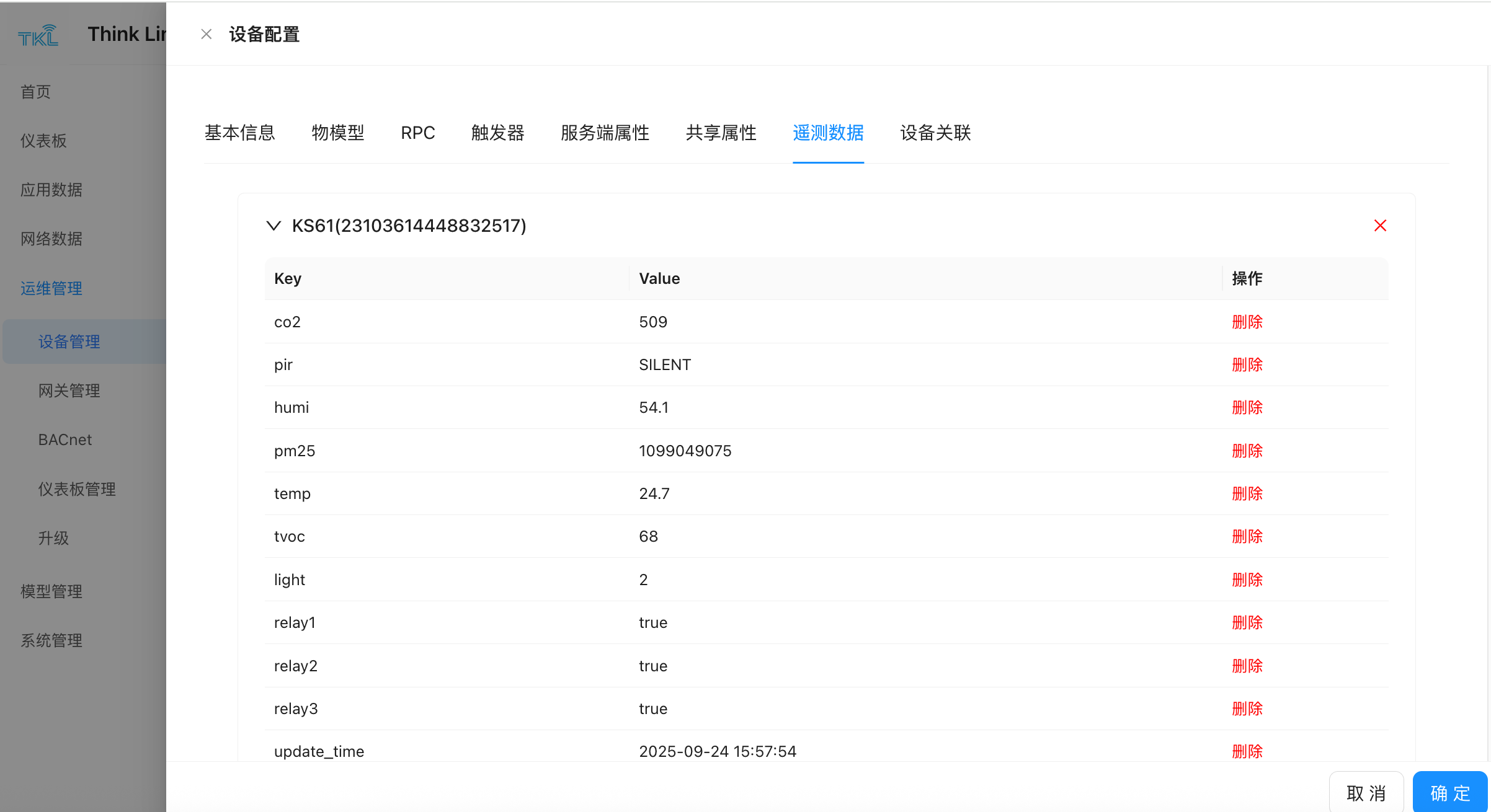

• device.telemetry_data[thingModelId]: Retrieves the most recent telemetry data packet for the specified Thing Model on this device.
• Multiple Thing Models are supported: if a device is associated with more than one Thing Model, use different thingModelId values to access each model's historical data independently.

1.2.3.2. msg – Raw Message Data

The standard LoRaWAN AS interface data format received by ThinkLink is as follows:

{
  "if": "loraWAN",
  "gwrx": [
    {
      "eui": "5a53012501030011",
      "chan": 0,
      "lsnr": 13.2,
      "rfch": 1,
      "rssi": -92,
      "time": "2025-09-17T03:51:04.8516751Z",
      "tmms": 0,
      "tmst": 2845948222,
      "ftime": 0
    }
  ],
  "type": "data",
  "token": 14892,
  "moteTx": {
    "codr": "4/5",
    "datr": "SF7BW125",
    "freq": 471.5,
    "modu": "LORA",
    "macAck": "",
    "macCmd": ""
  },
  "geoInfo": {
    "type": "gw:wifi",
    "accuracy": 50,
    "altitude": 0,
    "latitude": 34.19925,
    "longitude": 108.8659
  },
  "moteeui": "6353012af1090498",
  "version": "3.0",
  "userdata": {
    "port": 11,
    "class": "ClassA",
    "seqno": 18654,
    "payload": "IQcDDG4PAADWBIsC34IG",
    "confirmed": false
  }
}

Common field access patterns:

• Payload bytes: msg.userdata.payload (Base64-encoded)
• FPort: msg.userdata.port
• RSSI: msg.gwrx[0].rssi
• SNR: msg.gwrx[0].lsnr
• Timestamp: msg.gwrx[0].time

For non-LoRaWAN data sources (such as JSON data reported over MQTT), access fields directly by JSON key path.

1.2.3.3. thingModelId – Thing Model Identifier

Used to access historical data for a specific Thing Model associated with the device. For example:

let lastData = device.telemetry_data['temp_humi_v1'];

1.2.3.4. noticeAttrs – Change Notification Flags

This object indicates whether the current message was triggered by an attribute change:

Field	Type	Description
server_attrs	Boolean	true if server-side attributes have changed
shared_attrs	Boolean	true if shared attributes have changed
telemetry_data	Boolean	true if telemetry data has been updated

Use this to gate specific logic — for example, only write to a database when telemetry data is updated.

1.2.3.5. Return Value Format

The parsing script must return an object conforming to the following structure:

return {
    sub_device: null,
    telemetry_data: {    // parsed telemetry data; set to null if not applicable
        temperature: 23.5,
        humidity: 60.2,
        rssi: -85
    },
    server_attrs: null,  // server-side attributes; typically null
    shared_attrs: {      // shared attributes (optional); used for config such as intervals
        heartbeat_interval: 30
    }
};

1.2.3.6. Return Value Field Definitions

Field	Default	Description
shared_attrs	null	Shared attributes — persistent data stored at the device level, accessible by other system modules such as automation rules and alarm evaluations.
sub_device	null	Sub-device identifier. If a parent device (e.g., a DTU) collects data from sub-devices via RS-485 or M-Bus, set this field to the sub-device's communication address (e.g., its 485 address). ThinkLink will create a virtual sub-device in device management and assign it a unique EUI automatically.
telemetry_data	null	Telemetry data — real-time operational data and application-layer parsed results. Used in dashboards, trend charts, and historical data queries.
server_attrs	null	Server-side attributes — metadata or configuration that does not need to be stored on the device. Kept only on the ThinkLink server, suitable for advanced feature extensions.

Note: Any field may be null to indicate no data of that type in the current uplink. Populate fields appropriately based on your use case to ensure full system functionality. All values must conform to the key-value format using valid strings, numbers, booleans, or objects.

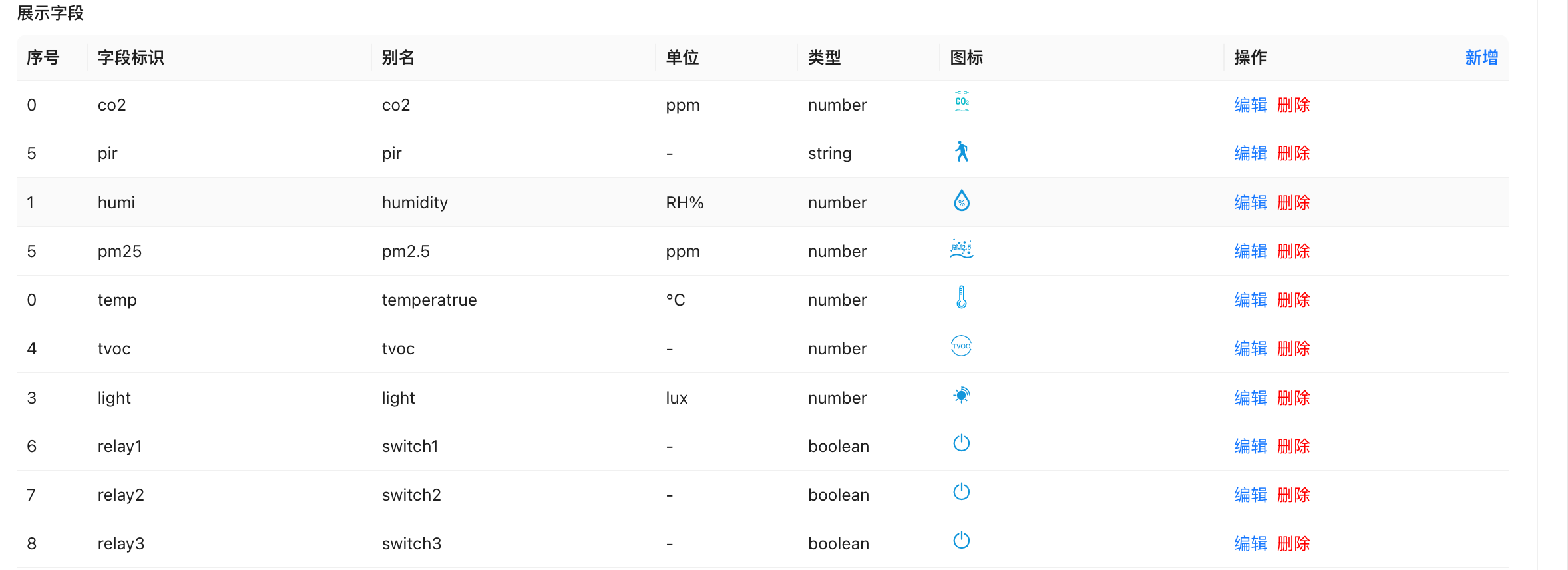

1.3. Display Fields

The Display Fields configuration defines which data items appear in application-layer views such as tables, cards, and dashboards.

• Telemetry Field: Must match a field name present in the device's telemetry_data output exactly.
• Order: Controls the display position of the field in table or card views.
• Alias: The label shown in the front-end UI, improving readability for end users.
• Unit: The unit of measurement for this field's value (e.g., °C, %, m³).
• Type: Select based on the actual data type. Use number for numeric data to enable formatted display.
• Icon: Optional icon for visual representation. SVG format is supported; download icons from iconfont.cn and embed the SVG code directly.

Tip: Once display fields are correctly configured, the system will automatically extract the corresponding fields from the Thing Model's parsed output and render them in the application UI.

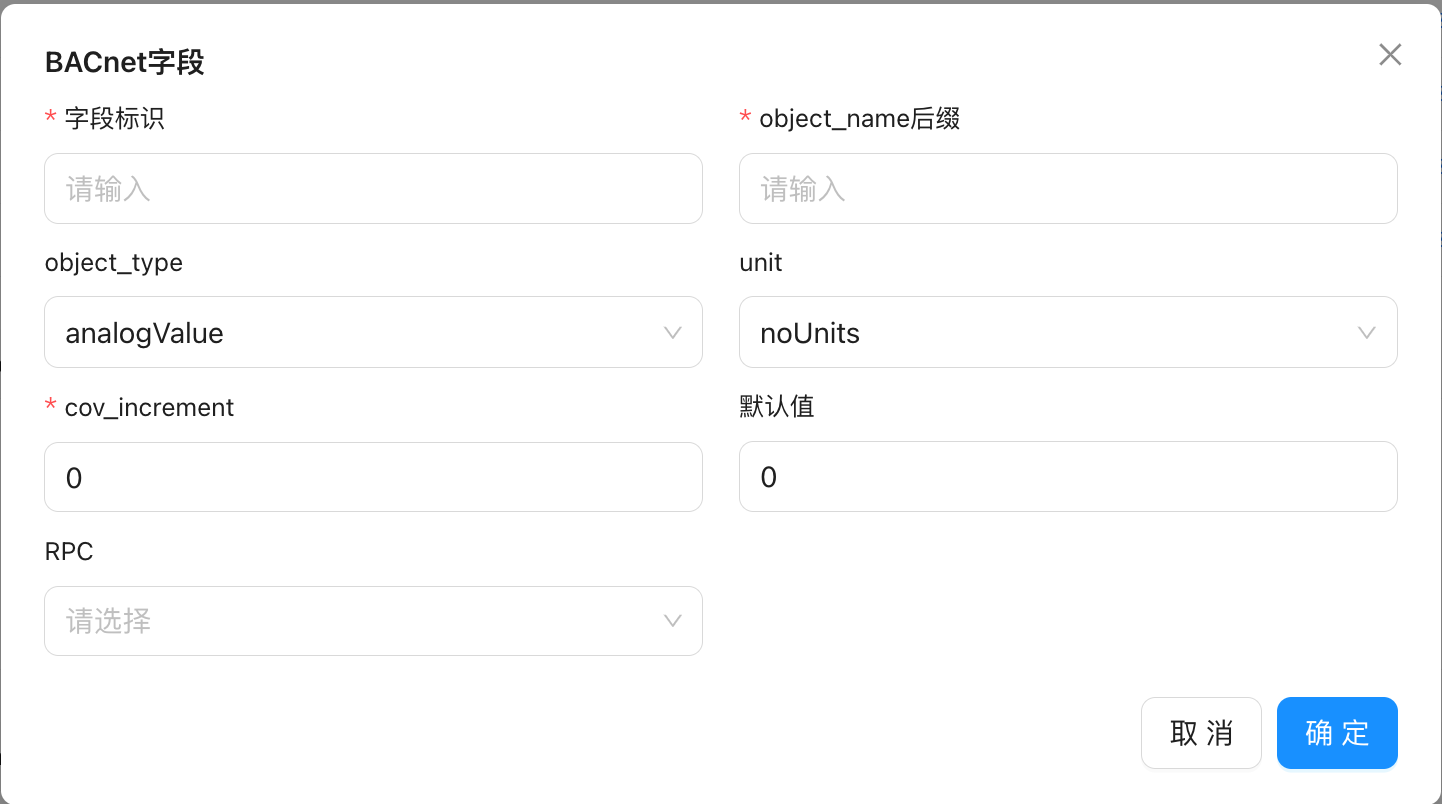

1.4. BACnet Field Configuration

When exposing device data via the BACnet protocol, each data field must be mapped and configured. The following describes each parameter when adding a BACnet field:

• field_name
  The field identifier of the data item. Must match the field identifier defined in the Thing Model exactly, to establish the mapping between Thing Model data and BACnet object properties.

• object_name_suffix
  A name suffix. ThinkLink concatenates the device's EUI with this suffix to generate a unique object_name, ensuring each BACnet object is uniquely identifiable on the network.

• object_type
  The BACnet object type for this data item, such as Analog Input or Binary Output. Choose based on the nature of the data.

• unit
  The unit of measurement for this data item, ensuring it displays correctly in BACnet clients such as a BAS or YABE.

• cov_increment
  The Change of Value (COV) threshold. When the data value changes by more than this amount, the system proactively sends a COV notification. Relevant for systems that support COV subscriptions.

• default_value
  The initial value of the data item, used for display and responses before the device reports any data.

• RPC
  Associates a remote control function with this field. If you need to write to this field or issue commands, configure the corresponding RPC in the RPC model first, then select it here.

1.4.1. Viewing BACnet Data with YABE

YABE (Yet Another BACnet Explorer) is a widely used BACnet device inspection and browsing tool. After configuration, connect YABE to the ThinkLink system to discover published BACnet devices, inspect their object properties, and verify that data is being published correctly.

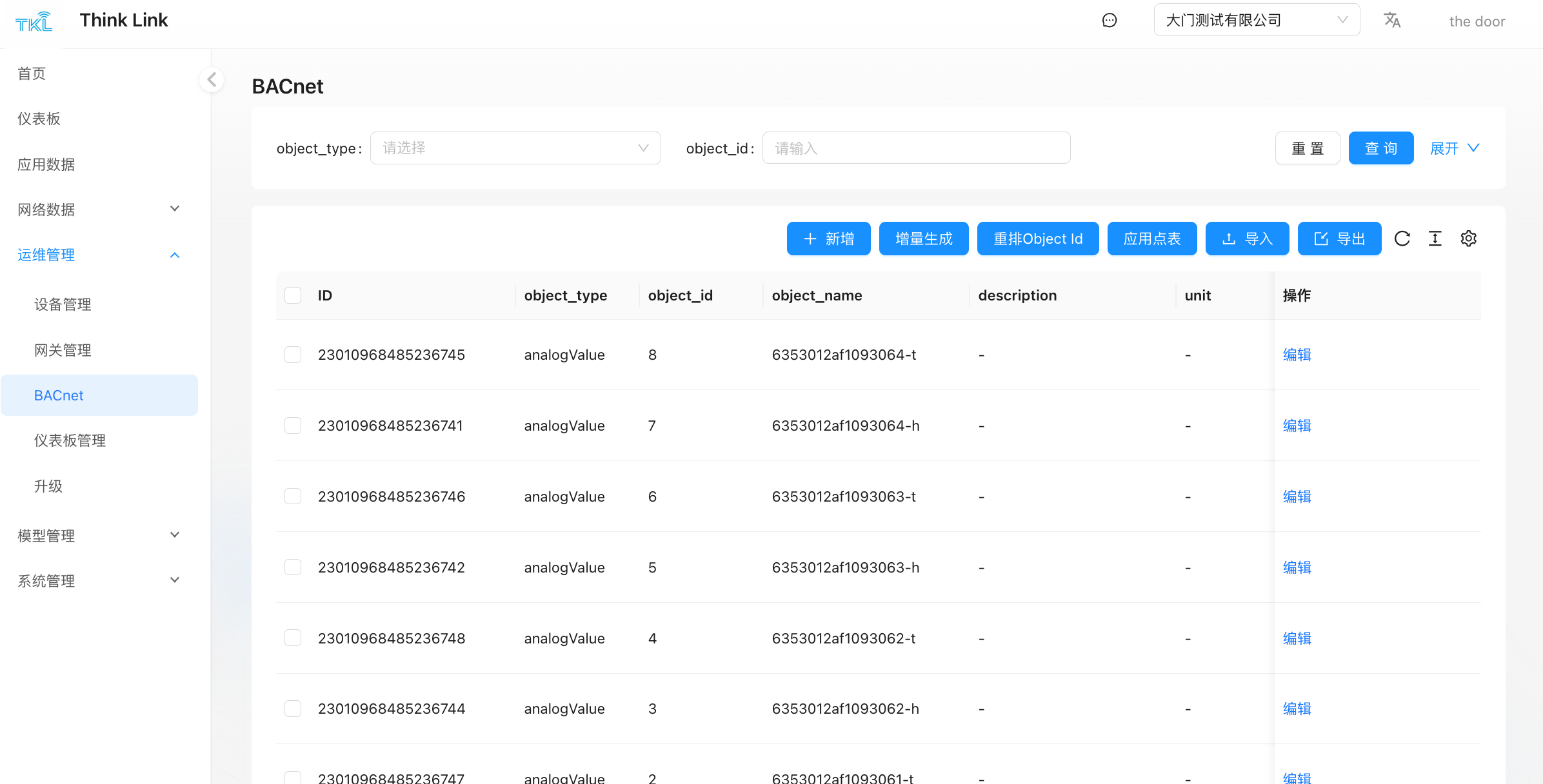

1.4.2. Generating a BACnet Point List

If a BMS (Building Management System) requires formal deployment, a standard BACnet point list file is typically needed for system integration and commissioning.

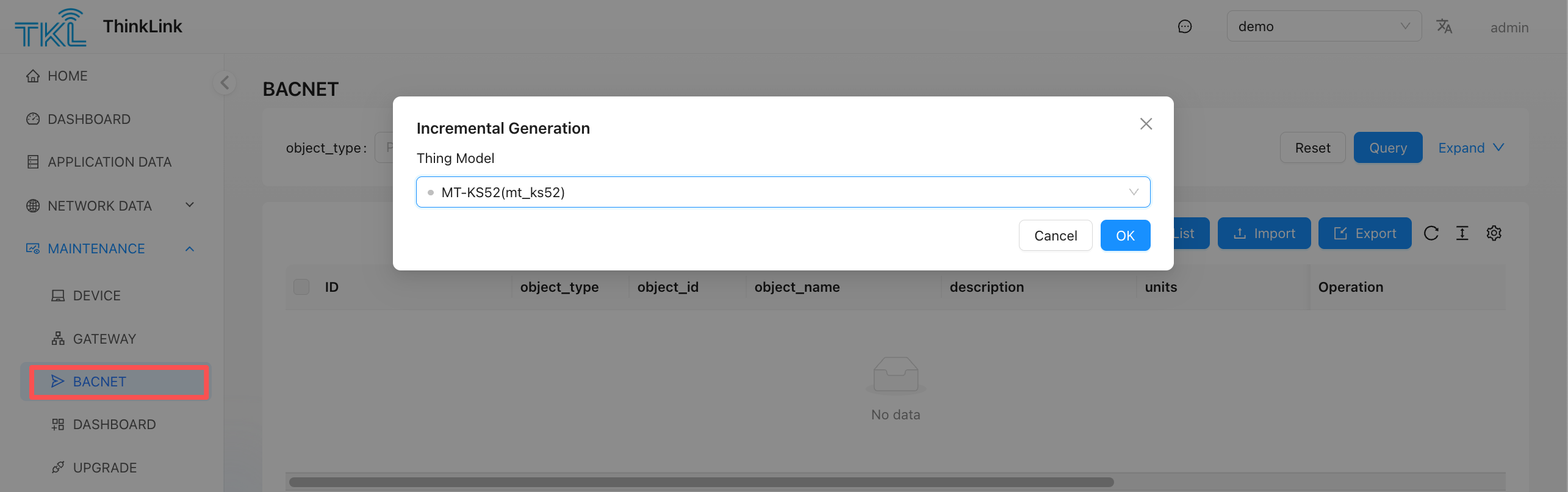

1. Navigate to Maintenance → BACnet.
2. Click the Incremental Generation button.
3. In the dialog, select the target Thing Model.
4. Confirm. The system will automatically generate point list entries for all BACnet fields defined under that Thing Model.

The generated point list includes: object type, object instance number, object name, description, data type, unit, and read/write permissions — ready to be handed off to a third-party system for integration.

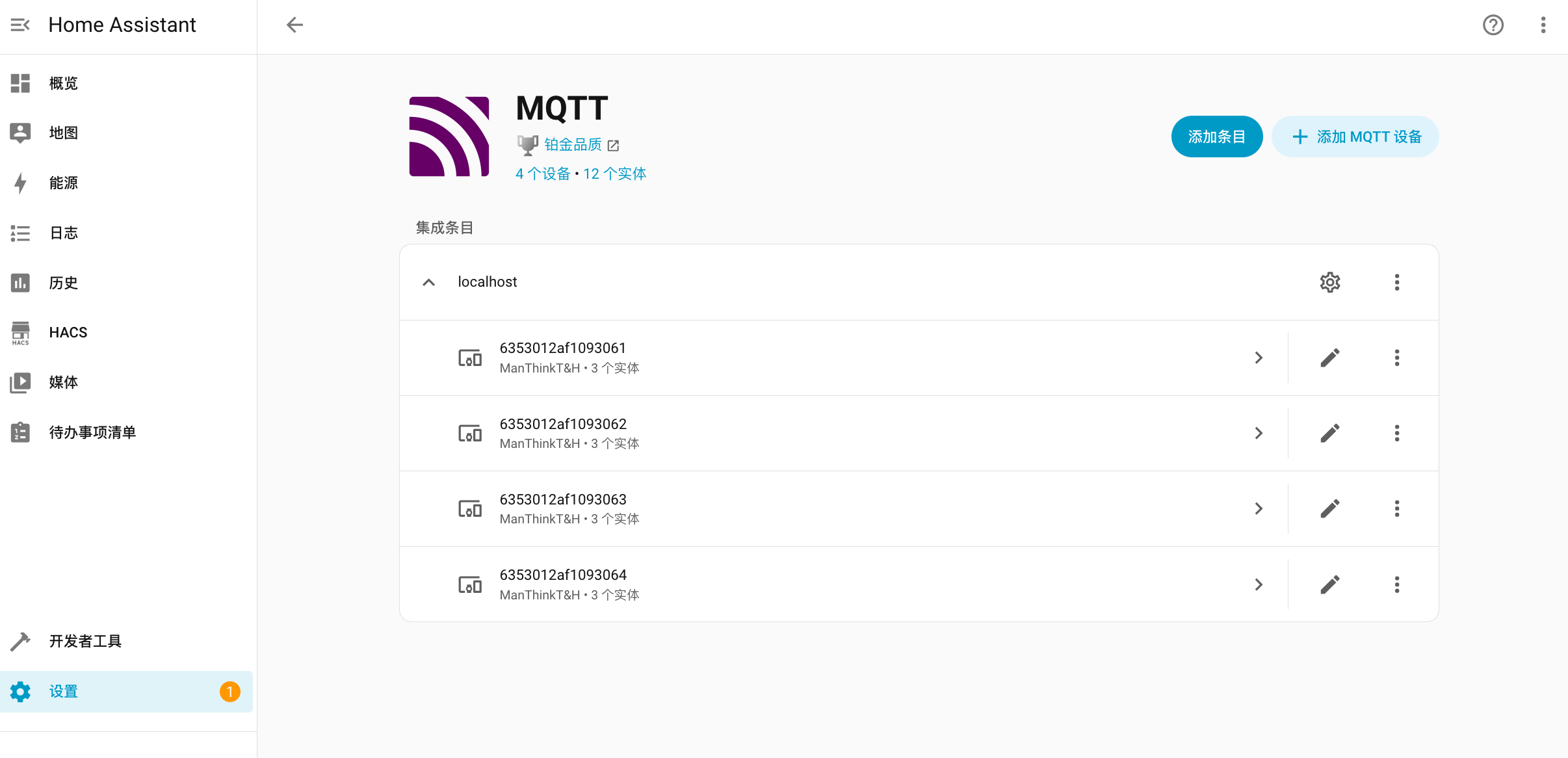

1.5. Home Assistant Integration

• [Note 1] Enabling the feature: The Home Assistant feature must be manually enabled on each device's configuration page before ThinkLink will send discovery messages for that device. When the feature is disabled, no discovery messages are sent to Home Assistant.
• [Note 2] Applying configuration changes: After modifying the Home Assistant field configuration, go to ThinkLink's Server Configuration page and click "Re-register all devices" to push the updated configuration to Home Assistant.

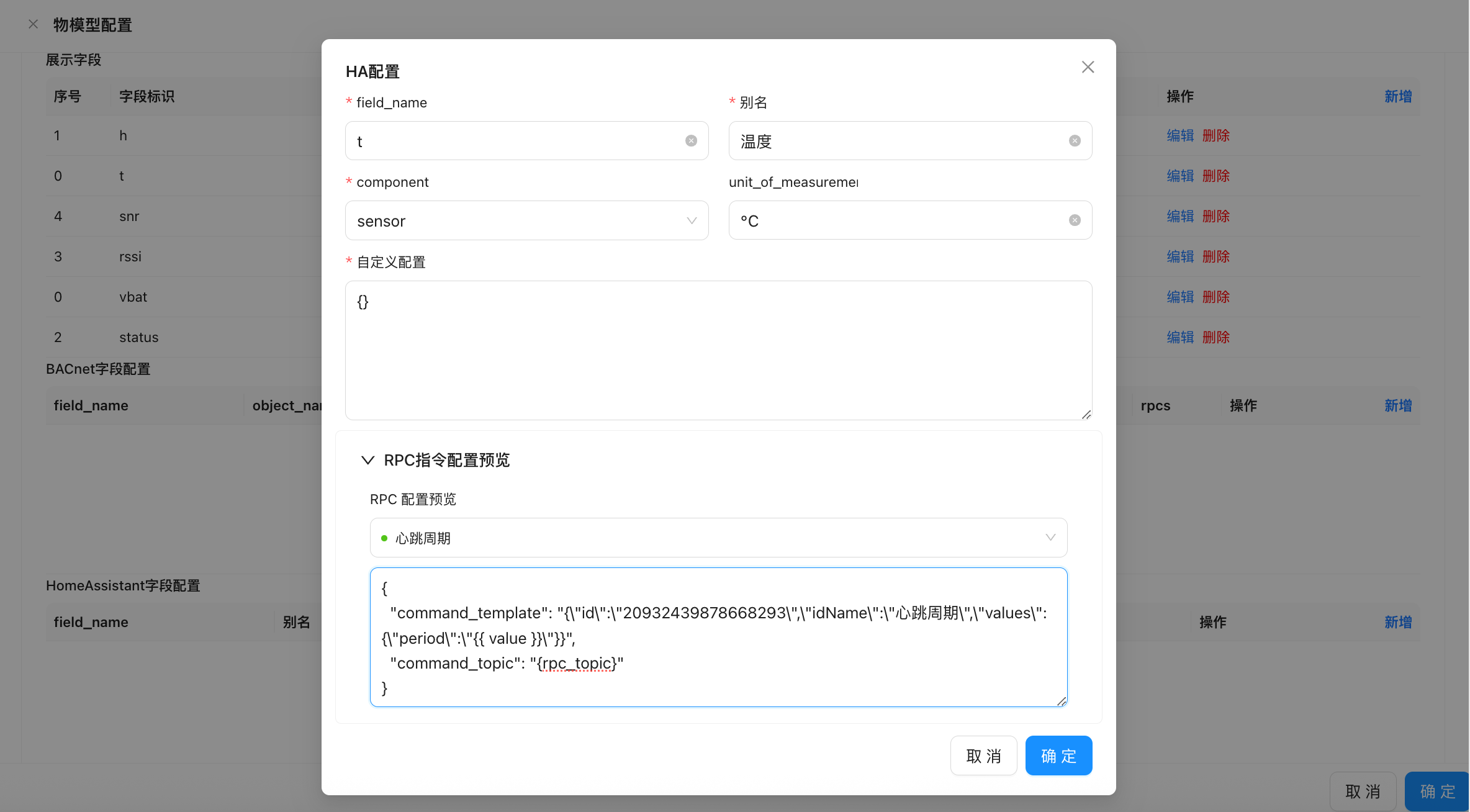

1.5.1. Adding Home Assistant Fields

Field	Description
field_name	The field identifier. Must match the identifier defined in the Thing Model for correct data mapping.
name	The display name shown in the Home Assistant interface.
component	The Home Assistant component type. ThinkLink currently supports sensor natively.
unit_of_measurement	The unit of measurement for this field's value (e.g., °C, %, Pa).

1.5.2. Supported Device Types

ThinkLink currently supports native integration only for the sensor component type in Home Assistant.

For other entity types (such as switch, light, or binary_sensor), define them in Home Assistant's custom MQTT configuration. Refer to the MQTT Discovery guide in the official Home Assistant documentation: https://www.home-assistant.io/integrations/mqtt/#mqtt-discovery.

By following the MQTT Discovery protocol, you can manually or programmatically create entities of any supported type.

1.5.3. Viewing Devices in Home Assistant

Once configuration is complete:

1. Ensure the MQTT integration is added and connected to the same MQTT broker used by ThinkLink.
2. ThinkLink will automatically publish device discovery messages to the MQTT topic (using the homeassistant/ prefix by default).
3. Go to Settings > Devices & Services > MQTT in Home Assistant to see devices and sensors automatically discovered and registered by ThinkLink.

From there, devices appear in your dashboard and can be monitored, used in automations, or configured for alerts.

1.6. Associating a Thing Model with a Device

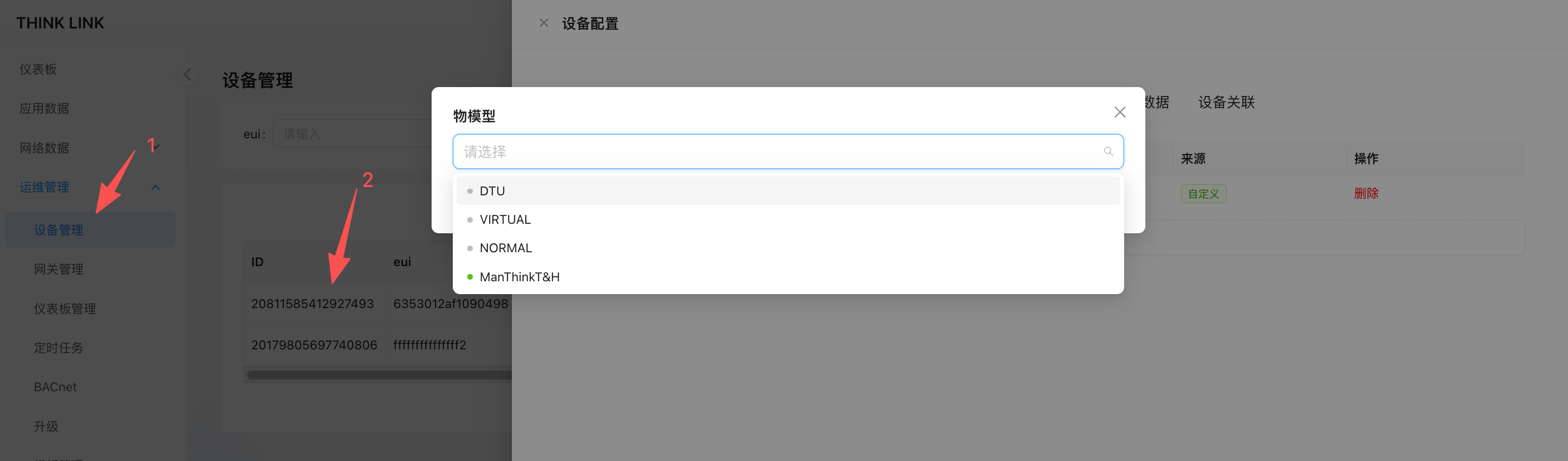

1. Navigate to Maintenance → Device Management and locate the target device.
2. Click the Details button to open the device detail page.
3. Switch to the Thing Model tab and click Add.
4. Select the Thing Model from the list. After confirming, the association is complete.

Note: To associate the same Thing Model with multiple devices at once, use the Template feature for bulk configuration.

1.6.1. Viewing Application Data

1. Go to the Application Data page in the left navigation menu.
2. Select the target Thing Model at the top of the page. The system will load all device data bound to that model.
3. When a device sends uplink data, the system parses it through the Thing Model. The parsed application-layer data is displayed here.
4. Click Historical Data to switch to the historical view, where data can be explored as a line chart or data table over a selected time range.

1.6.2. Viewing Data Through Device Properties

• After a device reports shared attribute data:
  • Go to Maintenance → Device Management, select the device, and click Details.
  • Switch to the Shared Attributes tab to view current attribute values and their last update times.
• After a device reports telemetry data:
  • Go to the same Details page for the target device.
  • Switch to the Telemetry Data tab. The system displays the most recent telemetry update for a quick view of device status.

Version History & Restore

Every time you save a Thing Model, the platform records a version snapshot. Click History Versions in the editor to browse earlier versions. Each entry offers:

• Detail — view the snapshot's content (and compare it against neighboring versions).
• Restore — roll the current value back to that snapshot. Restoring creates a new version entry (so nothing in the history is lost) and reloads the list to the first page. A confirmation prompt notes that restoring produces a new version.

The same History Versions / Restore controls are available on the RPC Model, Trigger Model, and Forwarder Script editors.

Testing the parser without a device

When you only want to confirm that a parsing script decodes its input correctly — for example when wiring up an NFC Template — the Test action accepts a skipDeviceCheck flag. With skipDeviceCheck = true, the platform injects a synthetic placeholder device instead of looking up a real one by EUI, so the test runs even when no matching device exists. Leave it unset for normal testing, where the device must exist (otherwise the platform returns Device not found).
