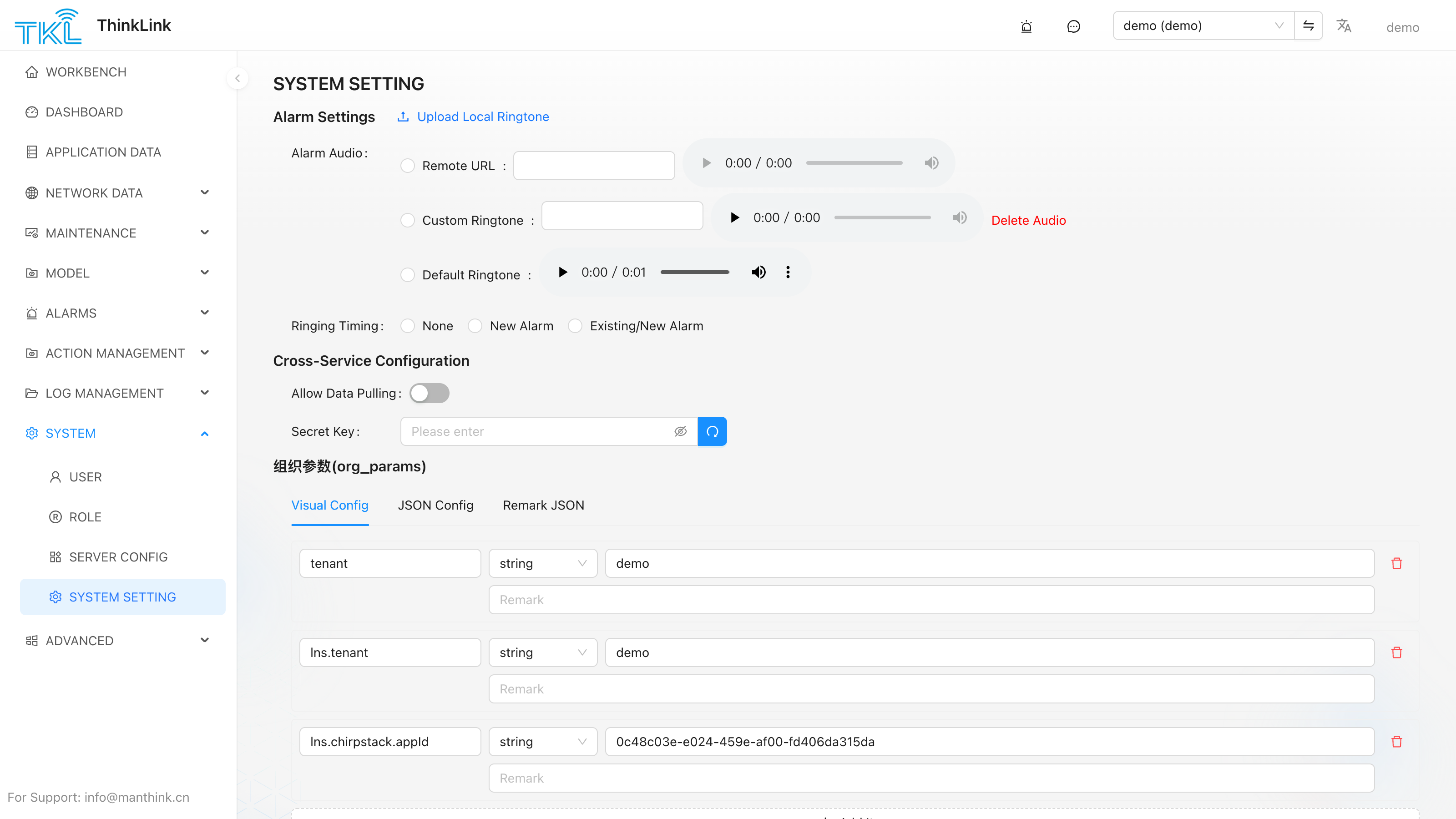

System Config

System Management → System Config holds three tenant-level settings that apply across the entire organization: how the browser sounds alarm alerts, whether this tenant's public models can be pulled by downstream nodes, and the shared environment variables (org_params) injected into all scripts.

This page is distinct from System Platform → System Config (admin-level SMTP / brand / OAuth). Both are named "System Config" but operate at different scopes.

---

Alarm Configuration

Controls how the browser plays an audible alert when a new alarm fires.

Alarm Audio

Choose one of three audio sources:

Option	Meaning
Remote URL	Play audio hosted at an external URL. Enter the full URL in the field next to it; a preview player appears immediately.
Custom Ringtone	Upload a local audio file (mp3/wav). The file is stored on the platform server. A preview player appears after upload. To remove the uploaded file, click the Delete Audio link.
Default Ringtone	Use the platform's built-in alarm sound (audio/public.mp3). No configuration required.

Ringing Timing

Controls when the audio plays:

Option	Meaning
None	Audio is never played.
New Alarm	Audio plays once each time a new alarm record is created.
Existing / New Alarm	Audio plays on new alarms AND continues playing while any unacknowledged alarm is still active.

Alarm audio plays in the browser tab where the user has ThinkLink open. It does not send push notifications to mobile devices.

---

Cross-Service Config

Tenant-level admission control for Remote Data Pull. A downstream ThinkLink node (TKG or TKE) can pull this tenant's public models and templates only when the following settings allow it.

Field	Meaning
Allow Data Pull	Master toggle. When off, all external pull requests to this tenant are rejected.
Secret Key	The token a downstream must present when pulling. Click the Regenerate button to rotate the key (invalidates all existing downstream pull configs immediately).

This is the tenant-level secret key and is independent of the system-platform-level secret key. Each tenant that wants to expose its data to downstream nodes must configure this separately.

How to set up a downstream pull:

1. Enable Allow Data Pull and copy the Secret Key from this page.
2. On the downstream node, go to System Platform → Remote Data Pull and enter this node's URL, the tenant_code of this organization, and the secret key.
3. The downstream can then pull public models, templates, plugins, and device configs from this tenant.

---

Org Params

Organization-level (tenant-level) key-value environment variables. Configure them once and they are automatically injected as the org_params argument into all scripts in this organization:

• RPC Model: rpc_script({ device, params, alarms, logger, org_params })
• Thing Model parse script: payload_parser(device, msg, thingModelId, noticeAttrs, org_params)
• Trigger Model: trigger_script(device, thingModelId, org_params)
• MQTT Forwarder script: forwardScript({ topic, msg, org_params })

Why it exists: keep credentials, endpoints, and business identifiers out of script bodies. Scripts hold only logic; secrets live in Org Params. Rotating a webhook or swapping environments is then a single edit here — no need to touch every script.

Comparison with other attribute scopes

Source	Scope	Where it's set	Visible to
params	One RPC call	Provided by the caller	The caller
device.shared_attrs	One device	Device ↔ platform sync	Device operator
device.server_attrs	One device	Device detail page	Device operator
org_params	Whole organization	System Config → Org Params	Org admin only

Configuration

The editor shows a key-value table. For each entry:

Field	Description
Key	Accessed in scripts as org_params.<key>. Use lowercase snake_case, e.g. wecom_webhook_url
Value	String value. For structured data, store JSON and JSON.parse it in the script
Remark	Operator note for what this param is for, e.g. "WeCom alarm-bot webhook, rotated quarterly"

Click Submit — new values take effect immediately for all scripts in the org (no restart required).

Reading Org Params in a script

// RPC: read the WeCom webhook from org_params
function rpc_script({ device, params, alarms, logger, org_params }) {
    let webhook = org_params?.wecom_webhook_url;
    if (!webhook) {
        logger.error("wecom_webhook_url not configured in org_params");
        return null;
    }
    return [{
        sleepTimeMs: 0,
        type: "axios",
        dnMsg: {
            method: "POST",
            url: webhook,
            headers: { "Content-Type": "application/json" },
            data: { msgtype: "text", text: { content: params.content } },
            timeout: 5000
        }
    }];
}

Security Notes

• The Org Params page is only accessible to org admins — regular operators cannot see webhook keys or credentials
• If a credential leaks: rotate it on the third-party platform, then update the value here; all scripts pick up the new value automatically
• Rotate webhook URLs and access keys at least once per quarter; record the rotation date in the Remark field

⚠️ Do not echo org_params values into device.server_attrs or log messages — that exposes the secret to callers and log readers.
