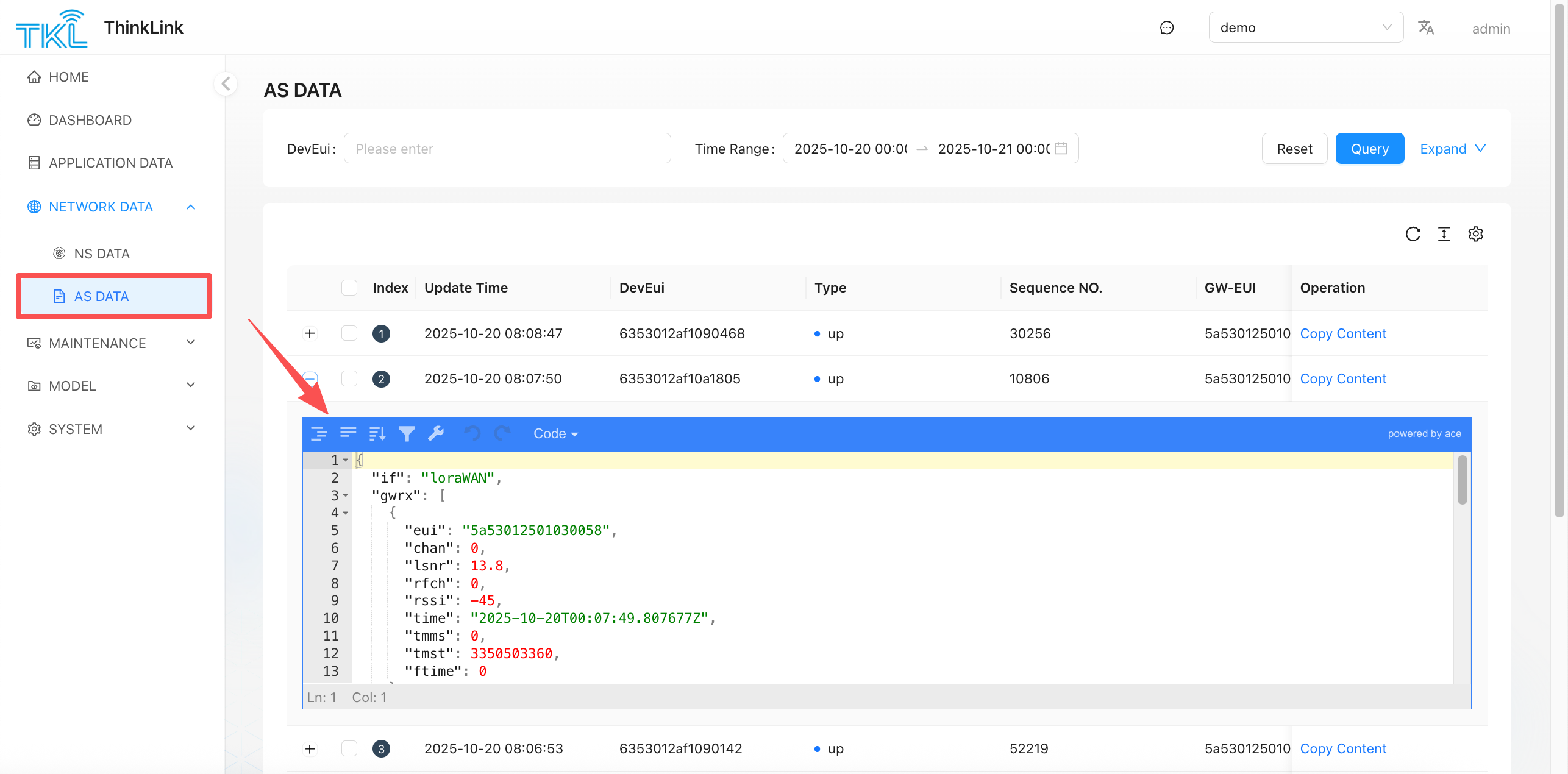

1. AS Data

AS Data is the structured application-layer payload output after the NS decrypts and deframes the LoRaWAN packet. The userdata.payload is still Base64-encoded, but LoRaWAN encryption has been removed. This layer sits between the raw device transmission and ThinkLink thing-model parsing — it is the right place to tap into for custom protocol handling or third-party platform integration.

Data Flow

flowchart LR
    DEV[LoRaWAN Device]:::dim
    GW[Gateway]:::dim
    NS[NS Data\nRaw MAC frames]:::dim
    AS[AS Data\nDecrypted structured payload]:::highlight
    RT[Realtime Data\nThing-model values]:::dim
    HIS[Historical Data\nTime-range archive]:::dim

    DEV -->|Radio signal| GW
    GW -->|SEMTECH UDP| NS
    NS -->|LoRaWAN decrypt| AS
    AS -->|Thing model parser| RT
    RT -->|Persist| HIS

    classDef highlight fill:#1a6fcf,color:#fff,stroke:#1a6fcf
    classDef dim fill:#f0f0f0,color:#888,stroke:#ddd

You are here: AS Data is decrypted but not yet parsed by a thing model. If you need values like temperature or humidity, go to Realtime Data.

The AS Data format follows the PTL-S05 ASP LoRaWAN NS and Application Server Communication Protocol.

---

1.1. Uplink Example (up)

{
  "if": "loraWAN",
  "gwrx": [
    {
      "eui": "5a53012501030056",
      "chan": 0,
      "lsnr": 14.2,
      "rfch": 0,
      "rssi": -21,
      "time": "2025-09-24T07:07:03.807677Z",
      "tmms": 0,
      "tmst": 1152383989,
      "ftime": 0
    }
  ],
  "type": "data",
  "token": 56368,
  "moteTx": {
    "codr": "4/5",
    "datr": "SF7BW125",
    "freq": 470.9,
    "modu": "LORA",
    "macAck": "",
    "macCmd": ""
  },
  "geoInfo": {
    "type": "gw:wifi",
    "accuracy": 50,
    "altitude": 0,
    "latitude": 34.19863,
    "longitude": 108.86273
  },
  "moteeui": "6353012af1090498",
  "version": "3.0",
  "userdata": {
    "port": 11,
    "class": "ClassA",
    "seqno": 27464,
    "payload": "IQcDDG4BAADaBB0C538J",
    "confirmed": false
  }
}

Field	Description
moteeui	EUI of the reporting device
gwrx	List of gateways that received this frame, with per-gateway RSSI/SNR
userdata.payload	Base64-encoded raw business payload — needs thing-model parsing
userdata.port	FPort — identifies the data type or function channel
userdata.seqno	Device frame sequence number (use for retransmission / packet-loss analysis)
geoInfo	Gateway geographic coordinates (for location-aware applications)

---

1.2. Downlink Example (dn)

{
  "dn": {
    "if": "loraWAN",
    "type": "data",
    "token": 1758686562078,
    "moteeui": "6353012af1099301",
    "version": "3.0",
    "userdata": {
      "port": 51,
      "type": "data",
      "fpend": false,
      "payload": "/mgSBgNWBQZoHBA1MzMzMzMzM04zAAAAAAAAABY=",
      "dnWaitms": 3000,
      "TxUTCtime": "",
      "confirmed": false,
      "intervalms": 0
    }
  }
}

Field	Description
moteeui	Target device EUI
userdata.port	FPort — 51 is typically used for parameter configuration commands
userdata.payload	Base64-encoded command payload
userdata.dnWaitms	Maximum wait time for the device downlink window (ms)
userdata.confirmed	Whether the device must ACK this downlink

---

1.3. When to Use AS Data

Scenario	Why AS Data helps
Custom protocol parsing	Payload is already decrypted — apply your own parser
Third-party platform integration	Subscribe to the AS MQTT topic and forward in real time
Confirm a downlink was scheduled by NS	Check whether a dn record appears
Debug a thing-model parser	Compare the raw AS payload with the Realtime Data output

MQTT subscription: Subscribe to /v32/{tenant}/as/up/data/# for uplink and /v32/{tenant}/as/dn/data/# for downlink to receive AS Data in real time. See ThinkLink Protocol for topic rules.

---

1.4. Common FPort Usage

The userdata.port field (FPort) identifies the business channel on the device. Common conventions:

FPort	Purpose
51	Transparent passthrough — raw bytes forwarded as-is, no protocol wrapping
201	OTA firmware upgrade
209	Heartbeat — used to confirm the device is alive
214	Parameter configuration and readback (downlink writes a parameter; uplink returns the current value)

These are common port conventions used by vendor devices. For third-party standard LoRaWAN devices, refer to the device's own documentation for port definitions.

---

1.5. Troubleshooting

When data is not arriving, trace the chain layer by layer:

Step 1: Confirm the gateway is online

Go to Operation Management → Gateway Management and check that the gateway shows online.

If the gateway is offline, no data can reach any downstream layer. Resolve the gateway connection before checking anything else.

---

Step 2: Check NS Data for uplink packets

Go to Network Data → NS Data and search as follows:

Case	Search field	Reason
Device has never joined, or just reset	DevEUI	Join Request / Join Accept frames are identified by DevEUI — no DevAddr exists yet
Device already joined, sending data	DevAddr	After joining, all data frames use the dynamically assigned DevAddr, not DevEUI

• No NS data: The device's signal is not reaching the gateway, or the gateway is not connected to the NS. Check radio coverage or gateway logs.
• NS data exists: Continue to Step 3.

---

Step 3: Check AS Data to confirm decryption succeeded

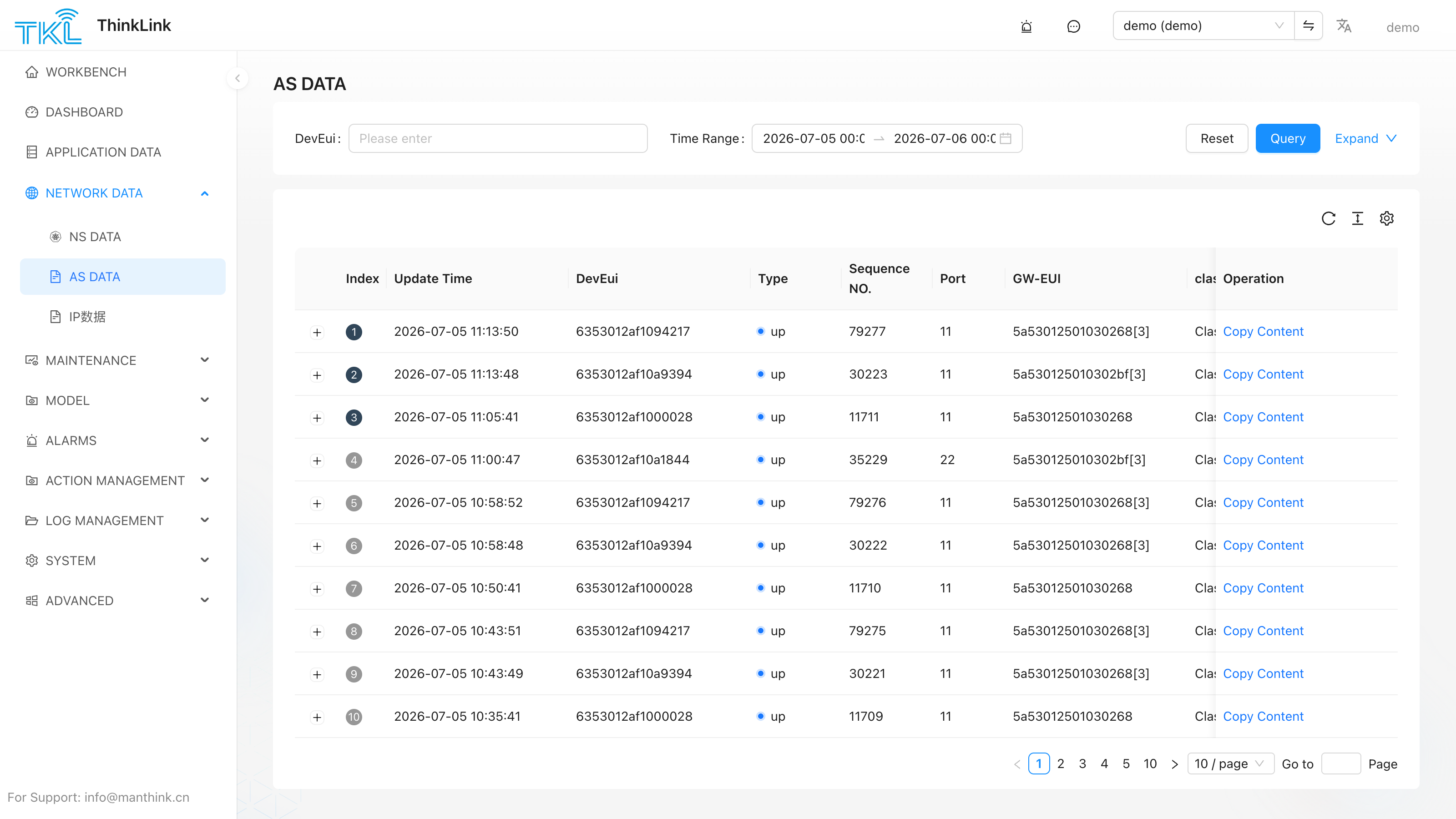

Go to Network Data → AS Data and search using the same DevEUI or DevAddr.

Symptom	Likely cause	Fix
NS has data, AS is empty	LoRaWAN keys mismatch (AppKey / AppSKey / NwkSKey)	Verify the keys in the device profile exactly match those flashed on the device
NS has data, AS is empty	Device profile missing or enable is false	Add a LoRaWAN profile in Device Management and confirm enable is on
AS has data	Decryption succeeded — continue to Step 4	—

---

Step 4: Confirm the thing model is correctly configured

Go to Application Data → Realtime Data and check for parsed business values.

Symptom	Likely cause	Fix
AS has data, Realtime Data is empty	No thing model assigned to the device	Assign a thing model in Model Management
AS has data, Realtime Data is empty	Thing model parser script has errors	Open the thing model editor and debug the parser using the payload from AS Data
AS has data, some Realtime fields are empty	Parser does not cover that FPort or field	Check the parser logic for the relevant port branch
