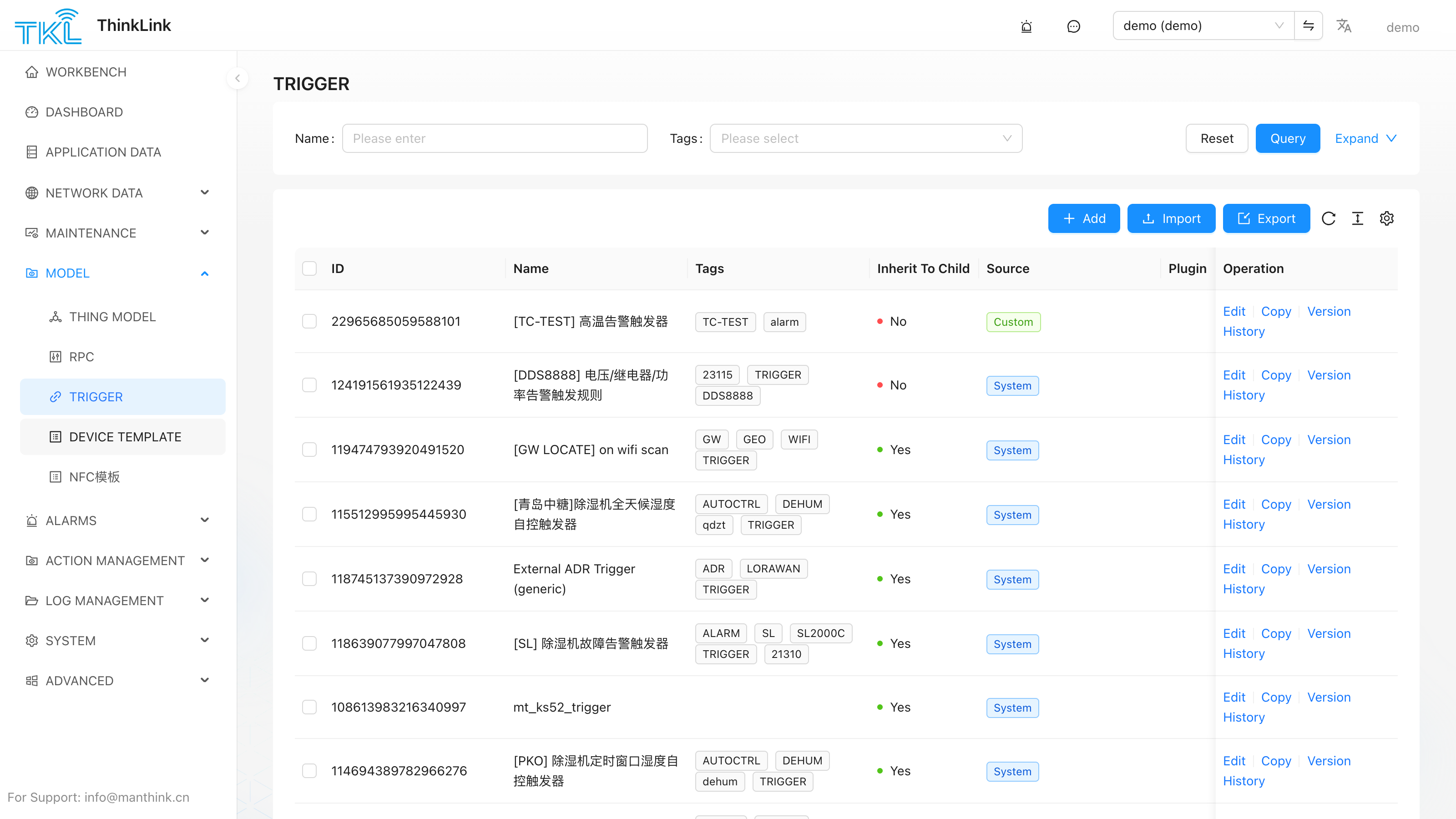

Trigger Model

The trigger model is used to automatically invoke RPC commands after device data is processed, enabling automated control between devices. For example: when an ambient temperature change is detected, the target set temperature of an air conditioner is automatically adjusted.

Trigger logic is implemented through JavaScript scripts. Once a device is bound to a trigger model, the script runs every time a new uplink arrives. The script can call RPC commands on any target device (including itself) to perform remote control or parameter updates.

1.1. Script Runtime Environment

Trigger scripts are written as bare function bodies: your code is wrapped by the platform inside function triggerRunner() { ... } and immediately invoked, so you do not need to write your own function trigger_script(...) {...} wrapper. The script returns its result via return.

javascript

// Type just this body into the script editor — no outer function needed
let tdata = device?.telemetry_data?.[thingModelId];
if (!tdata) return null;

return {
  actions: [
    { method: "alarm", params: { _eui: device.eui, action: "new", title: "...", level: "high" } }
  ]
};

Sandbox Environment & Constraints

The trigger script runs inside a vm2 sandbox, fully isolated from the Node.js host process.

Runtime limits

Constraint	Value	Details
Execution timeout	1000 ms	The script is killed after 1 second; the trigger fires no actions for this cycle.
`eval`	❌ Disabled	Dynamic code execution via `eval` is blocked.
WebAssembly	❌ Disabled	Loading or executing `.wasm` modules is blocked.
`async` / `await`	❌ Not supported	Trigger scripts are synchronous; asynchronous operations are not available.
`require` / `import`	❌ Not supported	No external modules can be imported.
`process`, `path`, `fs`, etc.	❌ Not available	These Node.js globals are not injected; referencing them throws `ReferenceError`.
`setTimeout` / `setInterval`	❌ Not available	Timer globals are absent. To delay execution, use the `delayms` field in the return value.
`console`	❌ Not available	Use the built-in Trigger Model log feature for debugging instead.

Buffer method restrictions

The sandbox injects a restricted Buffer object (SafeBuffer). Only the following static methods are available: alloc, from, isBuffer, byteLength, compare, concat. Buffer.allocUnsafe() and Buffer.allocUnsafeSlow() are explicitly blocked. Instance read/write methods (readUInt8, writeUInt16LE, etc.) work normally.

All available sandbox globals

The following names are available directly — no import required:

Name	Type	Description
`device`	Object	Current device object (`vm.freeze`, read-only).
`thingModelId`	String	Thing Model ID bound to this device.
`org_params`	Object	Organization-level "environment variables" maintained under System Management → Server Configuration → Org Params. See Server Configuration §1.6.
`env`	Object	Environment variables from plugins attached to this trigger model (`apply_to=ANY` or `trigger`). Advanced feature; most scripts do not need this.
`plugins`	Object	Plugin instances attached to this trigger model (same filter rule). Advanced feature; most scripts do not need this.
`Buffer`	Class	Restricted `SafeBuffer` wrapper for binary handling (see above).
`BufferTKL` / `PayloadParser` / `MSparser` / `Utils` / `TriggerHelper` / `RPCHelper`	Class	All classes exposed by `tklHelper` (`vm.freeze`, read-only). See tklHelper.

Note: device and all tklHelper classes are injected via vm.freeze. Assigning to their properties inside the script will not throw but will have no effect. The only output channel for a trigger script is its return value — the platform dispatches RPC calls based on the returned actions array.

device object properties:

Property	Type	Description
`eui`	string	Device EUI (16-char hex, globally unique).
`name`	string	Device name.
`device_type`	string	Device type: `"NORMAL"` / `"SUB_DEVICE"` / `"VIRTUAL"`.
`data_from`	string	Data source: `"LoRaWAN"` or `"OTHER"` (direct MQTT).
`parent`	string \| null	Parent device EUI (set for `SUB_DEVICE` only).
`online`	boolean	Whether the device is currently online.
`active_time`	string	Timestamp of the last uplink (ISO 8601).
`shared_attrs`	object	Attributes synchronized bidirectionally with the device (e.g. config params, firmware info).
`server_attrs`	object	Platform-side-only attributes (device cannot read). Used for alarm thresholds, linked EUIs, notification groups, etc.
`mac_attrs`	object	LoRaWAN MAC-layer attributes (band, ADR, etc.). Empty for non-LoRaWAN devices.
`telemetry_data`	object	Latest telemetry snapshot per Thing Model, keyed by `thingModelId`. Use `device.telemetry_data[thingModelId]` to access.
`thing_model`	string[]	Mounted Thing Model ID array.
`rpc`	string[]	Mounted RPC model ID array.
`tags`	string[]	Device tag array, used for filtering and grouping.
`tenant_code`	string	Tenant identifier.
`heart_period`	number	Heartbeat detection period (seconds).

Subsequent examples in this document are still written as function trigger_script(device, thingModelId) { ... } for clarity — that form is illustrative; in the real editor you only fill in the body.

1.2. Return Value Structure

The trigger script must return either null (do nothing) or an object with the following structure:

Field	Type	Description
`delayms`	Number	Delay in milliseconds before executing the actions.
`abort_previous_timer`	Boolean	If `true`, any pending delayed action from a previous trigger is cancelled and replaced by this one.
`should_dispatch`	Boolean	If `true`, actions are dispatched even when the data is identical to the previous trigger. Defaults to `false` (skipped when data is unchanged).
`actions`	Array	One or more RPC calls to execute, in array order.

Each entry in the actions array:

Field	Type	Description
`_eui`	String	EUI of the target device that will receive the RPC call. Note: `_eui` lives inside `params`, not at the action's top level.
`method`	String	The RPC `Method` name as defined in the RPC Model.
`methodId`	String	RPC Model ID — alternative to `method`. When both are set, `methodId` wins and `dispatchRpcById` is used; useful when method names collide across models.
`params`	Object \| null	Input parameters passed to the RPC script (must include `_eui`). If the RPC takes no other parameters, leave only `_eui`.

1.3. Return Value Examples

Basic control example

javascript

function trigger_script(device, thingModelId) {
    let temperature = device?.telemetry_data?.[thingModelId]?.TP;
    if (temperature === undefined) { return null; }

    if (temperature > 25) {
        return {
            delayms: 10000,
            abort_previous_timer: true,
            should_dispatch: true,
            actions: [{
                method: "mt_data_transparent",
                params: {
                    _eui: device.eui,
                    payload: "FE 05 00 00 FF 00 98 35"
                }
            }]
        };
    }
    return null;
}

Alarm trigger example (using ALARM RPC)

javascript

function trigger_script(device, thingModelId) {
    const ACTION = { no: "no", new: "new", clear: "clear" };
    const LEVEL  = { low: "low", mid: "mid", high: "high", urgent: "urgent" };

    let tdata  = device?.telemetry_data?.[thingModelId];
    if (tdata === undefined) { return null; }

    let name   = "overheat_alarm";
    let title  = "Overheat: [" + device.name + "]";
    let level  = LEVEL.high;
    let desc   = "";
    let action = ACTION.clear;
    // group is read from server_attrs; it maps to the `notify` field inside the ALARM RPC params
    let group  = device?.server_attrs?.group ?? [];

    if (tdata.temperature !== undefined && tdata.temperature >= device.server_attrs?.alarm_temp) {
        desc   = "[" + device.name + "] temperature exceeded threshold";
        action = ACTION.new;
    }

    return {
        delayms: 0,
        abort_previous_timer: true,
        actions: [{
            method: "alarm",
            params: {
                _eui:   device.eui,
                action: action,
                name:   name,
                title:  title,
                level:  level,
                desc:   desc,
                group:  group  // received as `notify` in the ALARM RPC script — see RPCModel §1.6
            }
        }]
    };
}

Note: Ensure the target device is registered on the TKL platform and has the corresponding RPC model mounted. Otherwise, the command cannot be sent.

1.4. Using TriggerHelper

TriggerHelper is a base class provided by tklHelper that simplifies building alarm-based trigger scripts. Instead of constructing the full return object manually, extend TriggerHelper and override _alarmProcess. The constructor also automatically reads device.server_attrs.notify and stores it as this.group, so alarm notifications are picked up from the device's server attributes without extra code.

Constructor Parameters

Parameter	Type	Description
`device`	Object	The current device object.
`thingModelId`	String	Thing Model ID for accessing telemetry data.
`alarmEvent`	String	Alarm event name (unique identifier). Defaults to `device.name`.
`title`	String	Alarm title. Automatically prefixed with `[device.name] :` .
`desc`	String	Alarm description.
`level`	String	Alarm level: `"low"`, `"mid"`, `"high"`, or `"urgent"`.
`action`	String	Initial action: `"new"`, `"clear"`, or `"no"`.

Method: `alarm(info)`

Calls _alarmProcess(info) (your override), then builds and returns the standard trigger return object. Returns null if the action is "no" or if _alarmProcess returns false.

Example

javascript

function trigger_script(device, thingModelId) {
    class MyAlarm extends TriggerHelper {
        _alarmProcess(info) {
            let tdata = this.tdata;
            if (tdata === undefined) { return false; }

            if (tdata.depth !== undefined && tdata.depth <= device.server_attrs?.alarm_depth) {
                this.desc   = "[" + device.name + "] depth below threshold, please check";
                this.action = "new";
            } else {
                this.action = "clear";
            }
        }
    }

    let helper = new MyAlarm({
        device:      device,
        thingModelId: thingModelId,
        alarmEvent:  "depth_alarm",
        title:       "Depth Alert",
        level:       "high"
    });

    return helper.alarm();
}

1.5. Mount Trigger Model

The created trigger model must be bound to a specific device before it takes effect.

Operation path: Maintenance → Device Management → [select target device] → Details → Trigger

Steps:

On the device details page, click the Trigger tab.
Click Add and select the created trigger model from the drop-down list.
Multiple different trigger models can be added to the same device.

✅ A single device supports multiple trigger models, suitable for multi-condition automation scenarios.

Version History & Restore

Every time you save a trigger model, the platform records a version snapshot. Click History Versions in the editor to browse earlier versions. Each entry offers:

Detail — view the snapshot's content (and compare it against neighboring versions).
Restore — roll the current value back to that snapshot. Restoring creates a new version entry (so nothing in the history is lost) and reloads the list to the first page. A confirmation prompt notes that restoring produces a new version.

The same History Versions / Restore controls are available on the RPC Model, Thing Model, and Forwarder Script editors.
