1. Device Management

ThinkLink (TKL) supports the access and unified management of multiple device types, including LoRaWAN devices, sub-devices, virtual devices, and external devices connected through third-party protocols. The system provides flexible equipment lifecycle management capabilities, including equipment file configuration, object model mounting, attribute setting, and Equipment Association establishment.

• [Note 1] ThinkLink supports LoRaWAN devices, sub-devices, virtual devices, and external devices.
• [Note 2] When adding a device, if a third-party device other than LoRaWAN is selected, the communication interface protocol must comply with the ThinkLink protocol standard.
• [Note 3] For LoRaWAN devices connected through ThinkLink NS, you need complete device registration in "LoRaWAN device file" first, and then the corresponding devEUI add to the platform device list.

1.1. LoRaWAN Device Profile

For all LoRaWAN devices that use the OTAA or ABP mode, you must create a device file in advance in this module. This profile is used by the network server (NS) for device authentication, key management, and communication scheduling.

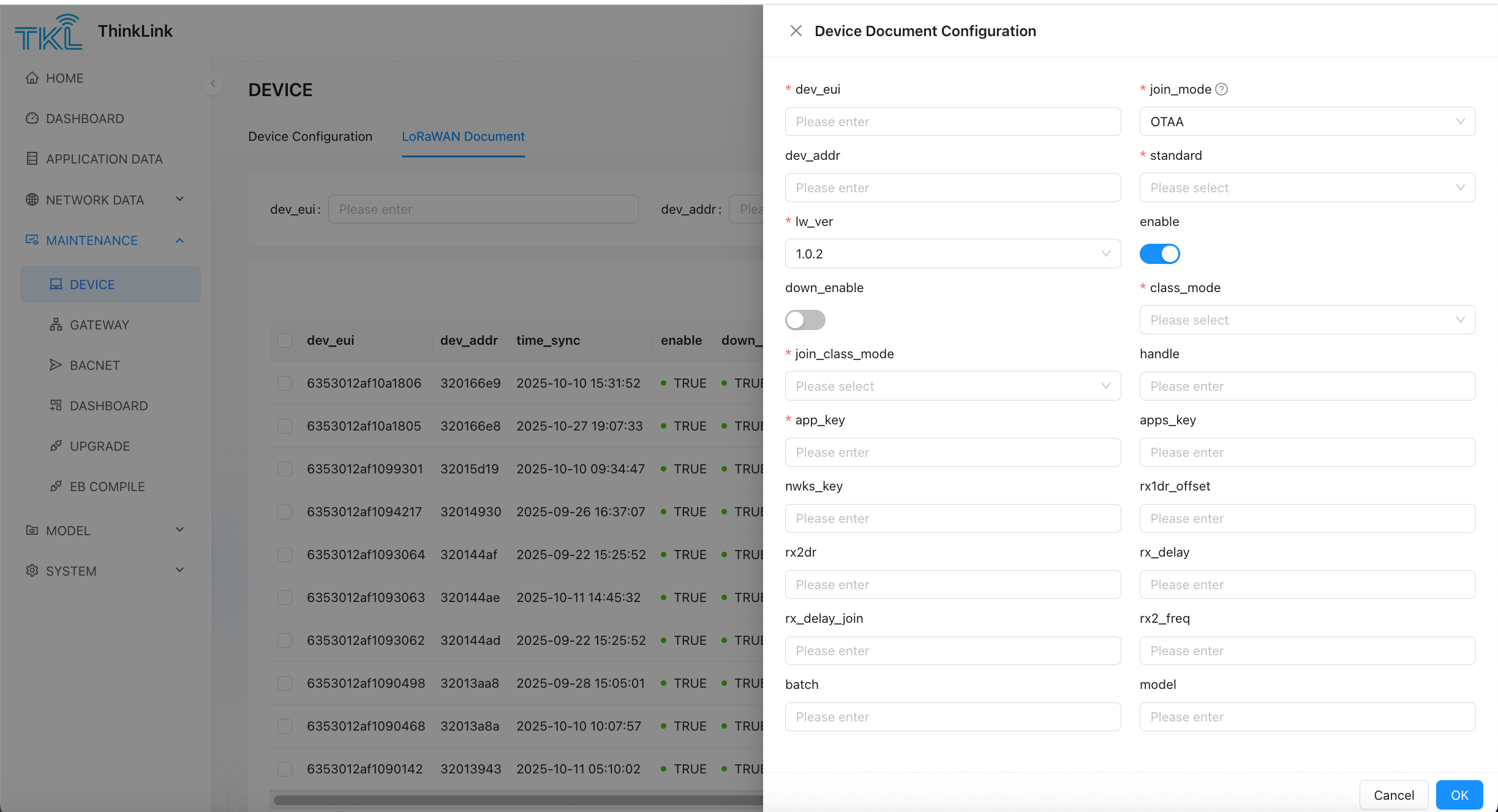

1.1.1. Add a single LoRaWAN device document

field Name	whether required	description
devEui	required	the unique device identifier (EUI), which is globally unique and cannot be repeated.
devAddr	required in ABP mode	device addresses to ensure no conflicts in the network.
enable	required (Default: TRUE )	Whether the device is enabled. TRUE means enabled, FALSE indicates disabled.
down_enable	required (Default: TRUE )	whether downlink communication is allowed. TRUE allowed, FALSE prohibited.
lw_ver	required	the LoRaWAN protocol version. Recommended to fill in 1.0.2 compatible with most 1.0.3 and some 1.0.4 area protocols.
standard	required	band standard, optional: CN470 EU433 EU868 AS923 AU915 US902
class_mode	Required (Default: ClassA )	equipment normal working mode, optional: ClassA or ClassC .
join_class_mode	required (Default: ClassA )	the mode after join the network shall be consistent with the actual behavior of the equipment.
app_key	required in OTAA mode	OTAA encryption key (application key).
apps_key	required in ABP mode	application session key.
nwks_key	required in ABP mode	network session key.
rx1dr_offset	required (default Auto-filled based on band)	the DR offset of the downlink window RX1 varies in different regions.
rx2dr	required (default Auto-filled based on band)	the transmission Rate of the RX2 window
rx_delay	required (Default: 1)	the delay time (unit: seconds) of the first downlink receiving window after the uplink data.
rx_delay_join	required (Default: 5)	the downlink response delay time (in seconds) in the Join process.
rx2_freq	required (default Auto-filled based on band)	the fixed frequency used by the RX2 receive window depends on the regional standard.

Prompt when adding a new device file, simply select the correct standard (Band) and

lw_ver (Protocol version), the remaining parameters are automatically filled with the default values of the corresponding standard, simplifying the configuration process.

1.1.2. Bulk import of LoRaWAN devices

For large-scale deployment scenarios, you can import LoRaWAN device files in batches through Excel tables.

1. Download the standard template file (refer to the sample format : mt_sdev_pf_macs--1756347416255.xlsx);
2. Fill in the equipment information according to the field requirements;
3. Upload to the system after verification;
4. The system automatically verifies and imports equipment files.

1.2. Add device

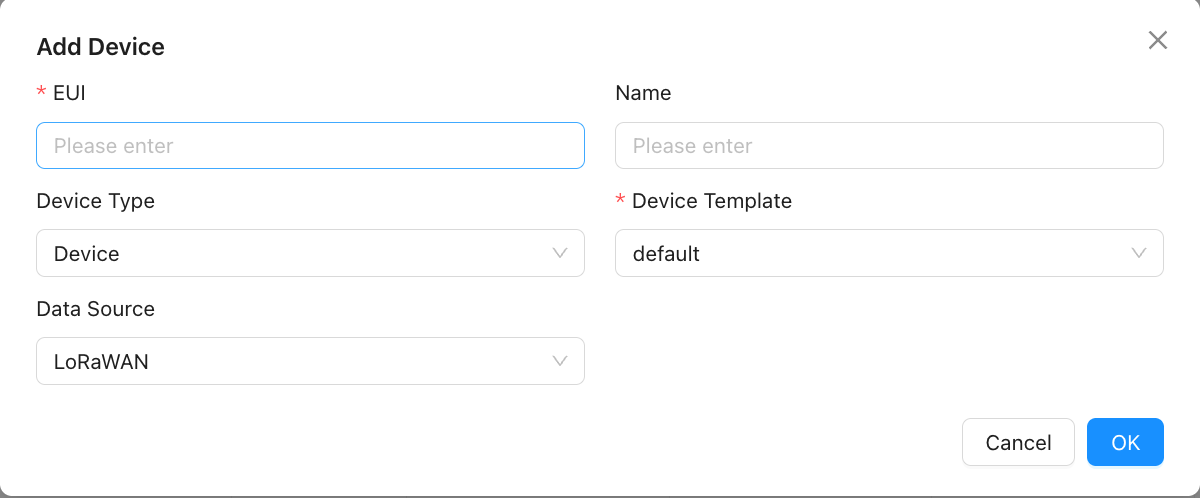

1.2.1. Add a device

after completing the configuration of the LoRaWAN device file, you can register it as a platform management device.

Field	description
EUI	the unique device number must be unique in the ThinkLink system.
Name	user-defined device name for easy identification and management.
Device Type	it can be a device or an asset, and the asset is a virtual body after the variable value is recombined.
Configuration Templates	you can select preset configuration templates, fast binding model, RPC and other function configurations.

✅Operational recommendations: The use of configuration templates can greatly improve the efficiency of equipment online, especially suitable for batch deployment of equipment of the same model.

1.2.2. Import by excel file

Devices can be imported in bulk using an Excel spreadsheet. The procedure is as follows:

1. Select an existing device and click "Export" to download its profile information as a template;
2. Fill in or modify the information for other devices based on this template,ensuring the EUI field is completed (EUI serves as the unique identifier for each device);
3. If certain parameters do not need to be imported or updated, the corresponding columns can be deleted from the spreadsheet;
4. After editing the file, proceed with the bulk import:

• If a device with the same EUI already exists in the system: The system will update the corresponding parameters of that device;
• If no device with the given EUI exists: A new device will be added.

⚠️ Ensure that each device's EUI is unique and accurate to guarantee correct import results.

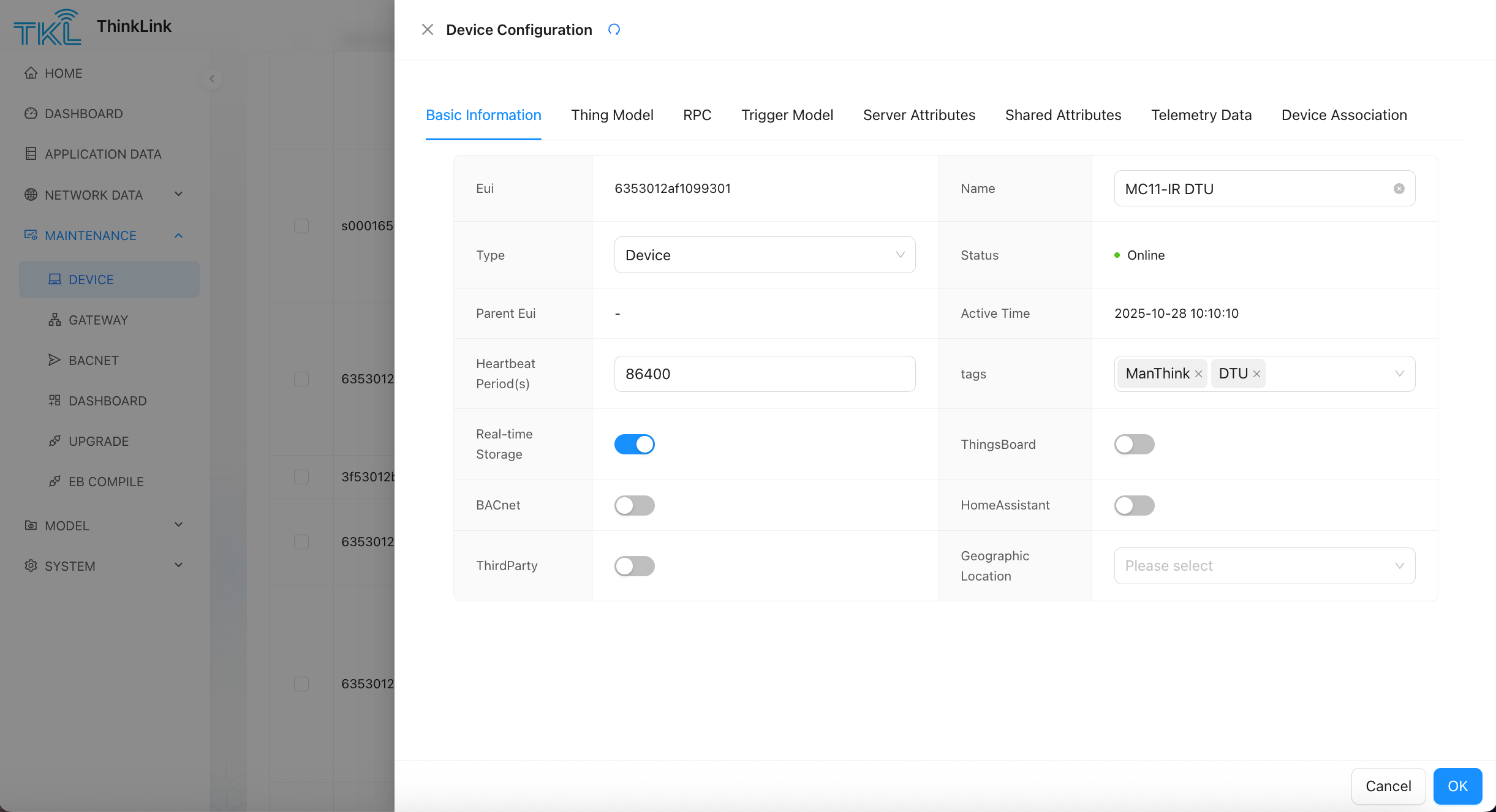

1.3. Device Details Page Function Module

After entering any device details page, you can perform the following advanced configuration and monitoring operations.

1.3.1. Add model

• click the Add button to mount an object model for the device.
• One device can mount multiple Thing models to parse different types of data messages (such as sensor data, status reporting, event notifications, etc.).
• The Thing Model is responsible for parsing the raw binary payload into structured application-layer data (such as temperature, humidity, switch state, etc.).

1.3.2. Add RPC

• Supports multiple remote procedure call (RPC) models for device mounting.
• It is used to issue reverse control instructions to the equipment (such as remote restart, parameter modification, firmware upgrade, etc.).

1.3.3. Server Attributes

• it is an application-layer logical parameter and is independent of the actual data reported by the device.
• Examples: temperature and humidity alarm threshold, heartbeat detection period, user comments, etc.
• Can be called in a TS script or RPC to participate in logical decisions.

Users can manually add or delete server attributes through the interface.

1.3.4. Shared Attributes

• it is stored on the device side, but can be updated in both the server and the device side.
• Typical uses: Device working mode, sampling interval, OTA update flag, etc.
• It can be extracted and synchronized to the platform when the thing model parses the upstream message.

1.3.5. Telemetry Data

• the latest telemetry information reported by the device and its timestamp are saved in real time.
• Including temperature, voltage, position, status code and other dynamic data.

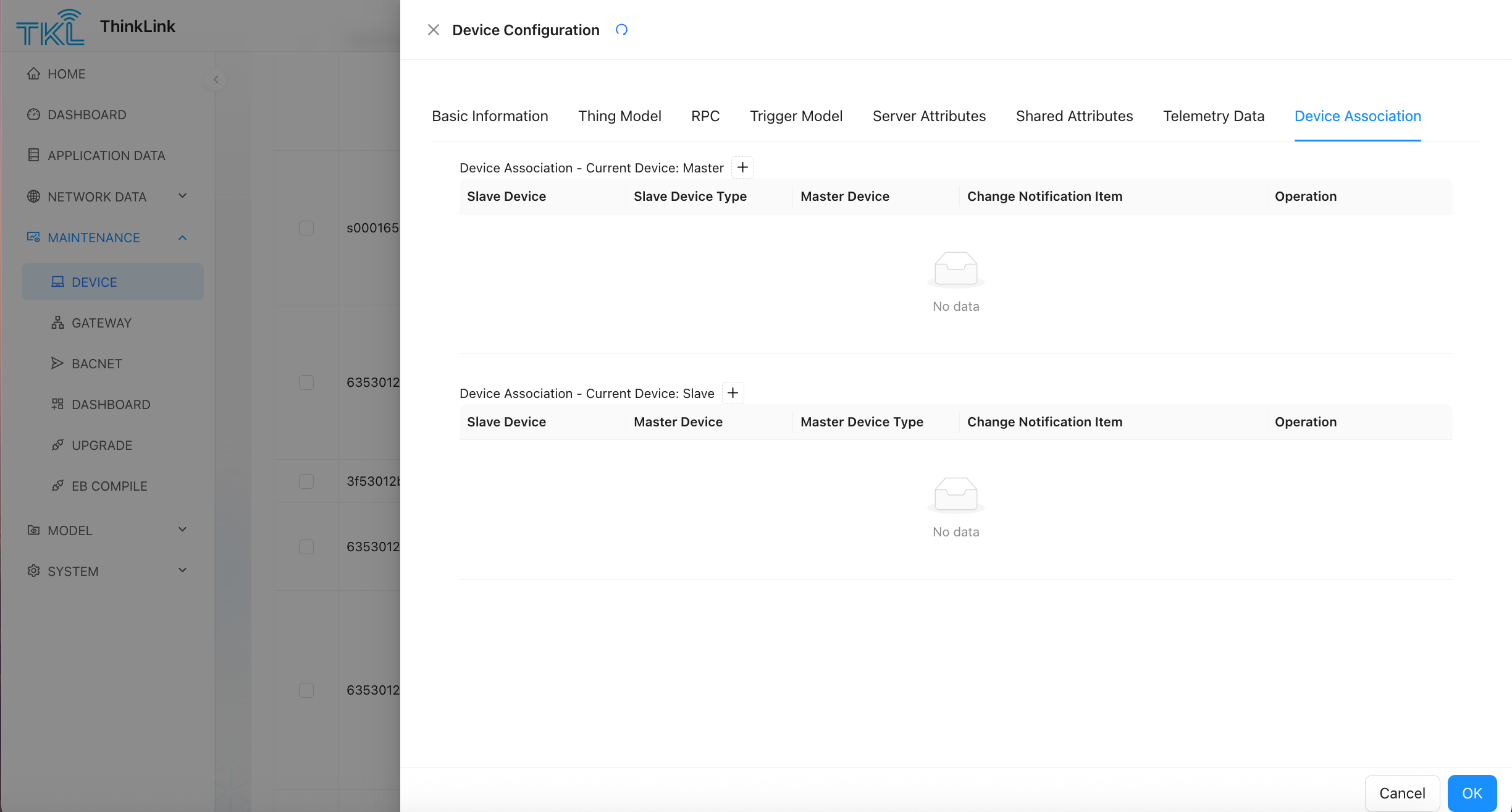

1.3.6. Device Association

• you can add slave devices to master devices or specify master devices for slave devices to build device topology.
• Association type support:
  • slave → Master
  • master device ← Multiple slave devices

When the following data of the associated device changes, the system will automatically trigger a notification to the master device:

change Type	trigger condition
telemetry Data	report New telemetry from Device
shared Properties	platform or device modification shared attributes
server Properties	business system changes server attributes

the master device can process these change data through the script in the thing model to realize functions such as aggregate calculation and linkage triggering.

1.3.7. Asset Class Model Example: Multi-device Temperature and Humidity Average Calculation

The following is a typical application case of the asset-level thing model: the main device represents the "air conditioning area", and the four temperature and humidity sensors are subordinate devices. Whenever any slave device reports data, the master device automatically calculates the average temperature and humidity of the current area.

Scenario Description:

• the master device is associated with 4 slave devices;
• each slave equipment shall regularly report its own temperature and humidity (t, h);
• the master device model script aggregates data and updates avgT (average temperature), avgH (average humidity) in real time.

The sample script is as follows:

let preTelemetry = device.telemetry_data[thingModelId];
let tempetrature;
let humidity;
if (!noticeAttrs.telemetry_data) {
        return {
            telemetry_data: null,
            server_attrs: null,
            shared_attrs: null,
        }
  }
msg.thing_model.forEach((tid) => {
  if (msg.telemetry_data[tid].t != null) {
    tempetrature = msg.telemetry_data[tid].t;
    humidity = msg.telemetry_data[tid].h;
  }
});

let avgT = device.telemetry_data[thingModelId]?.avgT || 0;
let avgH = device.telemetry_data[thingModelId]?.avgH || 0;

let attrs_server = {
  [msg.eui]: {
    "tempetrature": tempetrature,
    "humidity": humidity
  }
};

if (avgT === 0) avgT = tempetrature;
if (avgH === 0) avgH = humidity;

avgT = (avgT + tempetrature) / 2;
avgH = (avgH + humidity) / 2;

let attrs_telemetry = {
  "avgT": avgT,
  "avgH": avgH
};

return {
  telemetry_data: attrs_telemetry,
  server_attrs: attrs_server,
  shared_attrs: null,
};

this model is widely used in scenarios that require "regional data aggregation", such as building environmental monitoring, cold chain storage, and smart agriculture.
