Six sensors, from field signals to room conditions
Connect analog signals, dry contacts, leaks, temperature and humidity, and indoor air quality directly to a LoRaWAN network.
- KS31Analog signals
- KS32Dry contacts
- KS51Leak detection
- KS52Temperature, humidity, and optional leak
- KS53External temperature probe
- KS61Room environment and control
Start with the signal you need to observe
Each branch maps a field requirement to the models designed for it.
Industrial signals
Capture analog loops or dry-contact states without adding a separate wired gateway at the measurement point.
KS31 · KS32 02Environmental sensing
Monitor ambient temperature and humidity or a remote DS18B20 temperature probe.
KS52 · KS53 03Leak safety
Detect water at a point or along a sensing rope and report the event immediately.
KS51 04Room sensing
Combine indoor environment, air quality, occupancy, light, particulate matter, and switch inputs in an 86-box device.
KS61Choose the sensor that matches the field interface
All six models are current products with model-specific power, enclosure, acquisition, and uplink behavior.

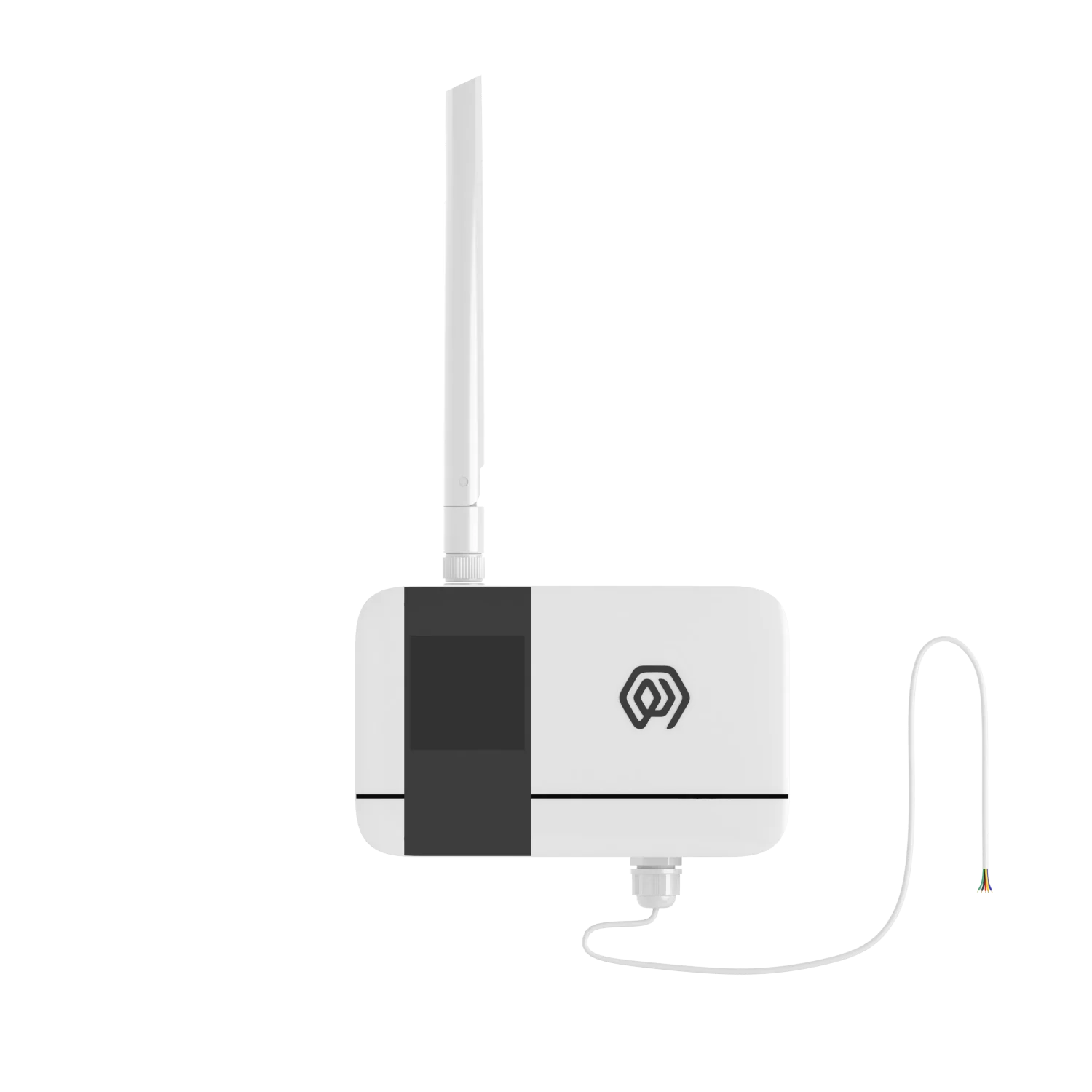

KS31
4-channel analog input sensor
Brings four industrial analog channels onto LoRaWAN.
Remote pressure, level, flow, and other transmitter signals.
- INPUT / SENSING
- 4 × 4–20mA or 0–10V
- POWER
- 4 × 2700mAh ER14505 batteries; about 6 years at 25℃ with 15-minute reporting
- ENVIRONMENT
- IP65 · Wall mount
- ACQUISITION
- Configurable periodic analog acquisition
- UPLINK
- Periodic + COV
Battery life depends on acquisition, uplink, radio, and environmental conditions documented for the product.
KS31 documentation ↗

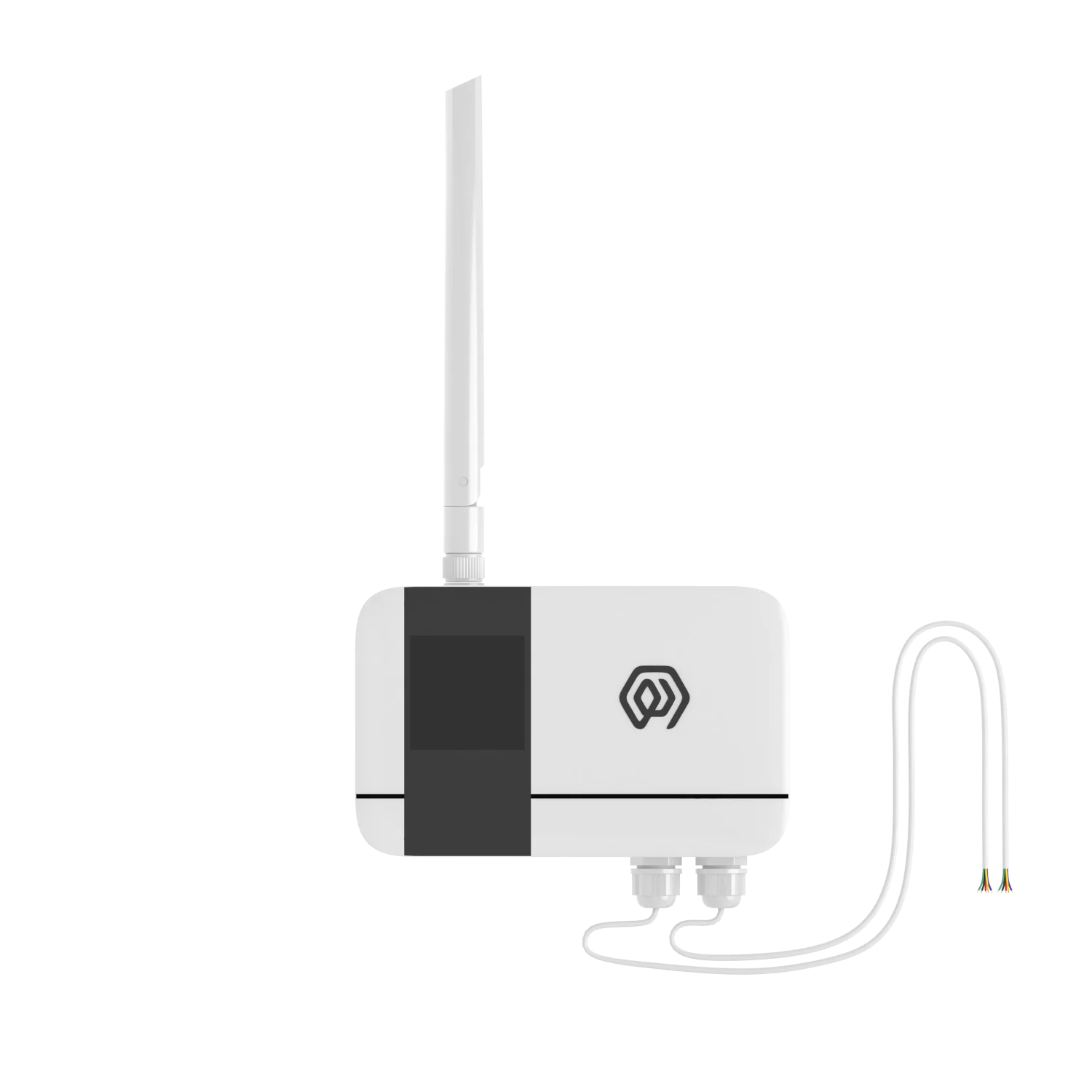

KS32
6-channel dry-contact sensor
Reports six dry-contact states and their counters over LoRaWAN.
Equipment status, pulse counting, alarms, and contact monitoring.
- INPUT / SENSING
- 6 dry-contact inputs with counters
- POWER
- 4 × 2700mAh ER14505 batteries; about 6 years at 25℃ with 15-minute reporting
- ENVIRONMENT
- IP65 · Wall mount
- ACQUISITION
- Continuous dry-contact state and counter acquisition
- UPLINK
- State-change event + periodic heartbeat
Event uplinks report state changes while periodic heartbeats preserve visibility.
KS32 documentation ↗

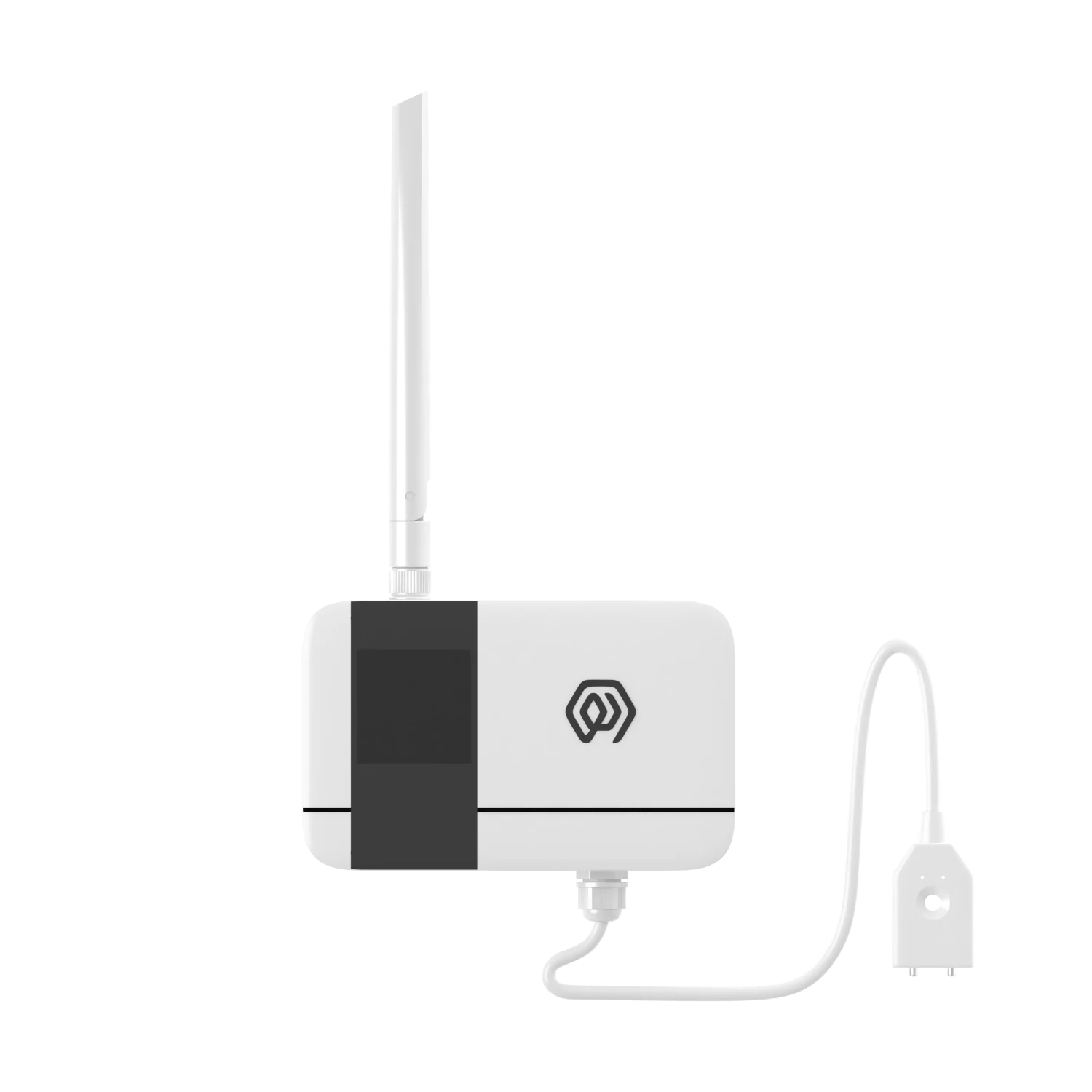

KS51
Leak detection sensor
Detects water through a point probe or rope leak probe.
Equipment rooms, pipe routes, cabinets, and other leak-risk areas.
- INPUT / SENSING
- Point or rope leak probe
- POWER
- 4 × 2700mAh ER14505 batteries; about 8 years at 25℃ with a 3-hour heartbeat
- ENVIRONMENT
- IP65 · Wall mount
- ACQUISITION
- Continuous leak-state acquisition
- UPLINK
- Leak event + periodic heartbeat
Cannot detect non-conductive liquids such as organic solvents and purified water; see the technical manual for full conditions.
KS51 documentation ↗

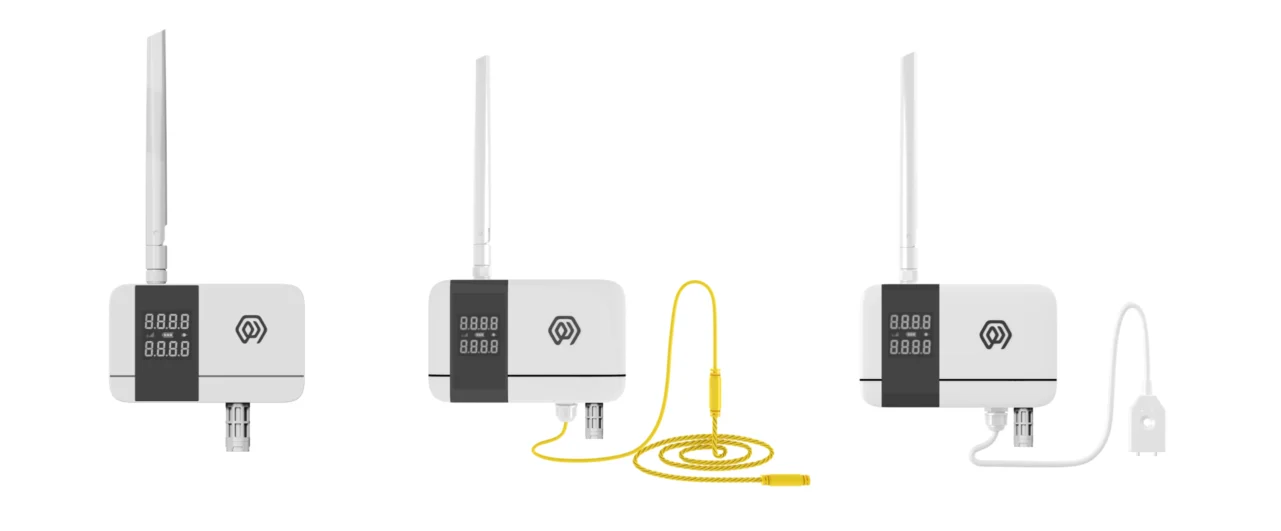

KS52
Temperature and humidity sensor
Measures temperature and humidity with optional leak detection.
Warehouses, cold-chain spaces, equipment rooms, and indoor environmental monitoring.
- INPUT / SENSING
- SHT41 temperature/humidity, optional leak; ±0.3℃, ±3%RH; low-power segment LCD
- POWER
- 4 × 2700mAh ER14505 batteries; about 6 years at 25℃ with 15-minute reporting
- ENVIRONMENT
- IP65 · Wall mount
- ACQUISITION
- 5-second temperature/humidity acquisition with optional leak monitoring
- UPLINK
- Periodic + temperature/humidity COV + optional leak event
The optional leak input adds event reporting without changing the temperature and humidity measurement role.
KS52 documentation ↗
KS53
External-probe temperature sensor
Reads a DS18B20 probe for stable remote temperature monitoring.
Pipes, tanks, cold storage, and locations that require a separated probe.
- INPUT / SENSING
- DS18B20 probe; ±0.5℃; low-power segment LCD; default 1-meter probe extension
- POWER
- External DIN-rail switching power supply
- ENVIRONMENT
- IP65 · Wall mount
- ACQUISITION
- 5-second temperature acquisition
- UPLINK
- Periodic + temperature COV
KS53 requires external DIN-rail power and is not a battery-powered model.
KS53 documentation ↗

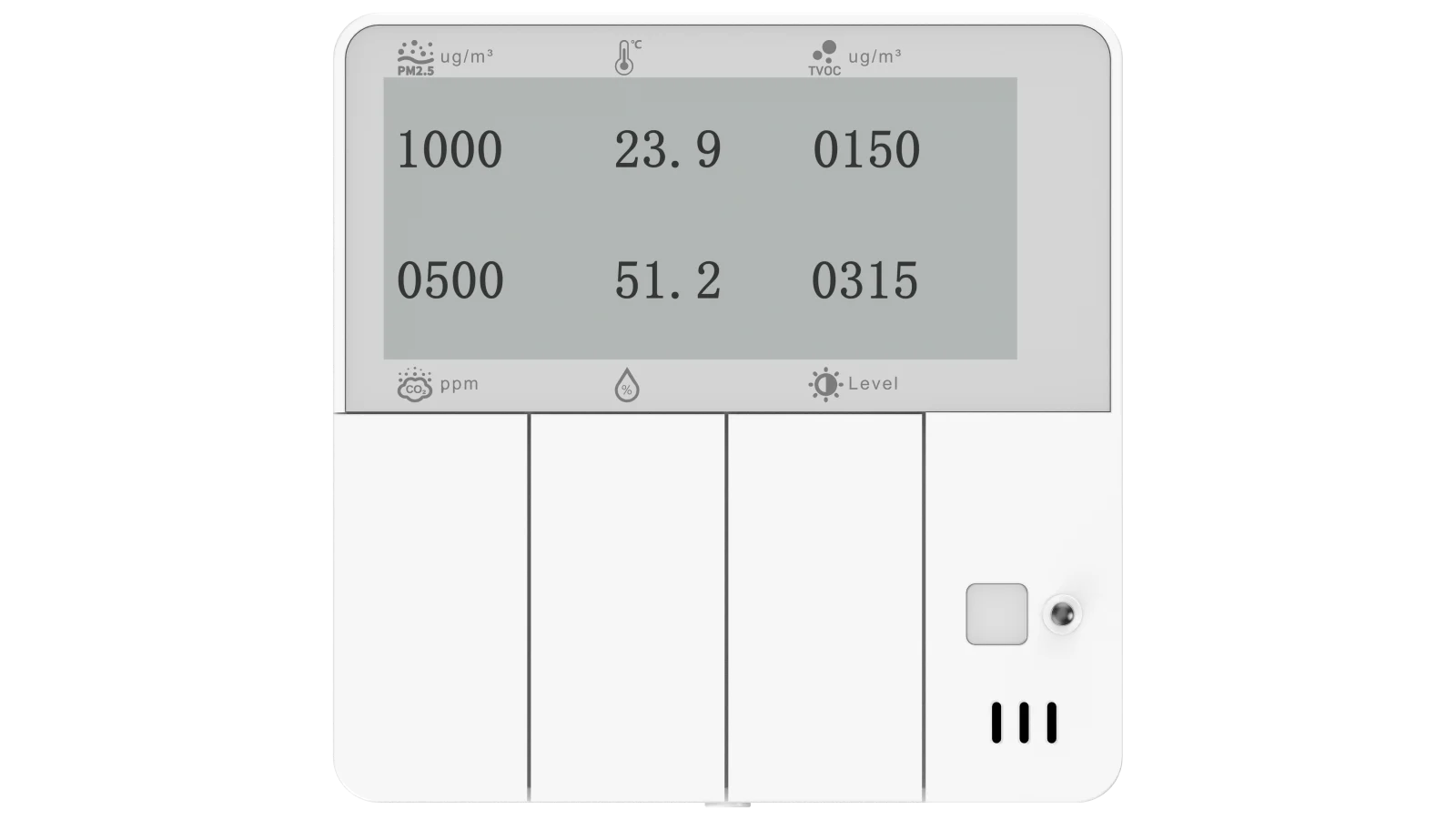

KS61
Room environment sensor
Combines room environment, air quality, presence, light, particulate matter, and switch sensing.
Offices, classrooms, meeting rooms, hospitality, and building automation.
- INPUT / SENSING
- Temperature, humidity, CO₂, TVOC, light, PIR, particulate matter, 3 switches; e-ink display; live-neutral version supports RS-485
- POWER
- Single-live-wire or live-neutral version
- ENVIRONMENT
- IP30 · Standard 86-box flush mount
- ACQUISITION
- Particulate acquisition: live-neutral 180 seconds; single-live 3 hours
- UPLINK
- Periodic + COV + PIR/switch event
Select the power version to match the site wiring before installation.
KS61 documentation ↗Technical differences at a glance
Compare measurement, power, enclosure, reporting behavior, and installation before specifying a model.
| Specification | KS31 | KS32 | KS51 | KS52 | KS53 | KS61 |
|---|---|---|---|---|---|---|
| Interface / measurement | 4 × 4–20mA or 0–10V | 6 dry-contact inputs with counters | Point or rope leak probe | SHT41 temperature/humidity, optional leak; ±0.3℃, ±3%RH; low-power segment LCD | DS18B20 probe; ±0.5℃; low-power segment LCD; default 1-meter probe extension | Temperature, humidity, CO₂, TVOC, light, PIR, particulate matter, 3 switches; e-ink display; live-neutral version supports RS-485 |
| Power | 4 × 2700mAh ER14505; about 6 years at 25℃ with 15-minute reporting | 4 × 2700mAh ER14505; about 6 years at 25℃ with 15-minute reporting | 4 × 2700mAh ER14505; about 8 years at 25℃ with a 3-hour heartbeat | 4 × 2700mAh ER14505; about 6 years at 25℃ with 15-minute reporting | External DIN-rail switching power supply | Single-live-wire or live-neutral version |
| Protection | IP65 | IP65 | IP65 | IP65 | IP65 | IP30 |
| Acquisition / uplink | Periodic + COV | State-change event + periodic heartbeat | Leak event + periodic heartbeat | 5-second acquisition; periodic + temperature/humidity COV + optional leak event | 5-second acquisition; periodic + temperature COV | Particulate acquisition: live-neutral 180 seconds, single-live 3 hours; periodic + COV + PIR/switch event |
| Mounting | Wall mount | Wall mount | Wall mount | Wall mount | Wall mount | Standard 86-box flush mount |
Battery-life figures apply under documented conditions and vary with acquisition, reporting, radio, and environmental settings.
From sensing point to application
The sensors use the same native LoRaWAN path while preserving model-specific acquisition and event behavior.
-
SENSOR
Acquire
Measure signals, environmental values, leaks, occupancy, or switch events at the field edge.
-
GATEWAY
Forward
A LoRaWAN gateway receives radio uplinks and forwards them over IP backhaul.
-
NETWORK
Operate
ThinkLink handles LoRaWAN network operation, device state, and decoded telemetry.
-
APPLICATION
Use
Applications visualize data, trigger automation, and deliver integrations or alerts.
Open the guide for each model
Use the model-specific documentation for installation, configuration, payloads, and operating constraints.
KS31 documentation
Analog input setup, acquisition, COV reporting, and payload details.
↗ KS32KS32 documentation
Dry-contact input, counter, event, heartbeat, and payload details.
↗ KS51KS51 documentation
Point and rope probe installation, leak events, and payload details.
↗ KS52KS52 documentation
Temperature, humidity, optional leak, COV, and payload details.
↗ KS53KS53 documentation
DS18B20 probe, external power, COV, and payload details.
↗ KS61KS61 documentation
Room sensing, wiring versions, events, installation, and payload details.
↗Specify the right sensing path
Tell us the signal, installation, reporting interval, and power available at the site.
