THINK·LINK
LoRaWAN GATEWAY · PRODUCT SELECTION

Choose the gateway by edge capability, then by installation environment

GD6 uses ESP32-S3 and connects to an external ThinkLink or compatible network server. GD7 includes the complete ThinkLink platform. Choose the platform deployment, then the environment and interfaces.

Choose a gateway Read the manuals →
GD6
Main productGD61 indoor · GD62 outdoor
GD71 / GD73
Main productGD71 indoor · GD73 industrial indoor
GD72
Main productIP67 outdoor · edge
01 / GD71 GD71 · Indoor LoRaWAN edge gateway
IP30 · Wall mount or free-standing
02 / GD73 GD73 · Industrial indoor LoRaWAN gateway
IP30 · DIN rail
03 / GD72 GD72 · Protected outdoor LoRaWAN gateway
IP67 · Pole or wall mount
01 · DECISION PATH

Start with the job the gateway must do

The decisive split is whether the site needs embedded ThinkLink. Environment, interfaces and mounting then identify the physical model.

OPEN / GD6

GD6 lightweight access and open design

Use GD61 indoors or GD62 for IP67 outdoor sites. Configure with gwTool6 and connect to an external platform.

 INDOOR / GD71 · GD73

Indoor edge services, two mounting options

GD71 mounts on a wall or stands freely. GD73 adds DIN rail mounting, RS-485 and DC 5–24 V input. Both include ThinkLink.

 OUTDOOR / GD72

Protected outdoor edge deployment

Choose IP67 protection, wide temperature operation, pole mounting and optional embedded ThinkLink.
02 · MAIN GATEWAYS

GD6 and GD7 for five deployment choices

The profiles below keep only verified selection facts. Regional bands, cellular modules and complete ordering codes must be confirmed for the delivered SKU.

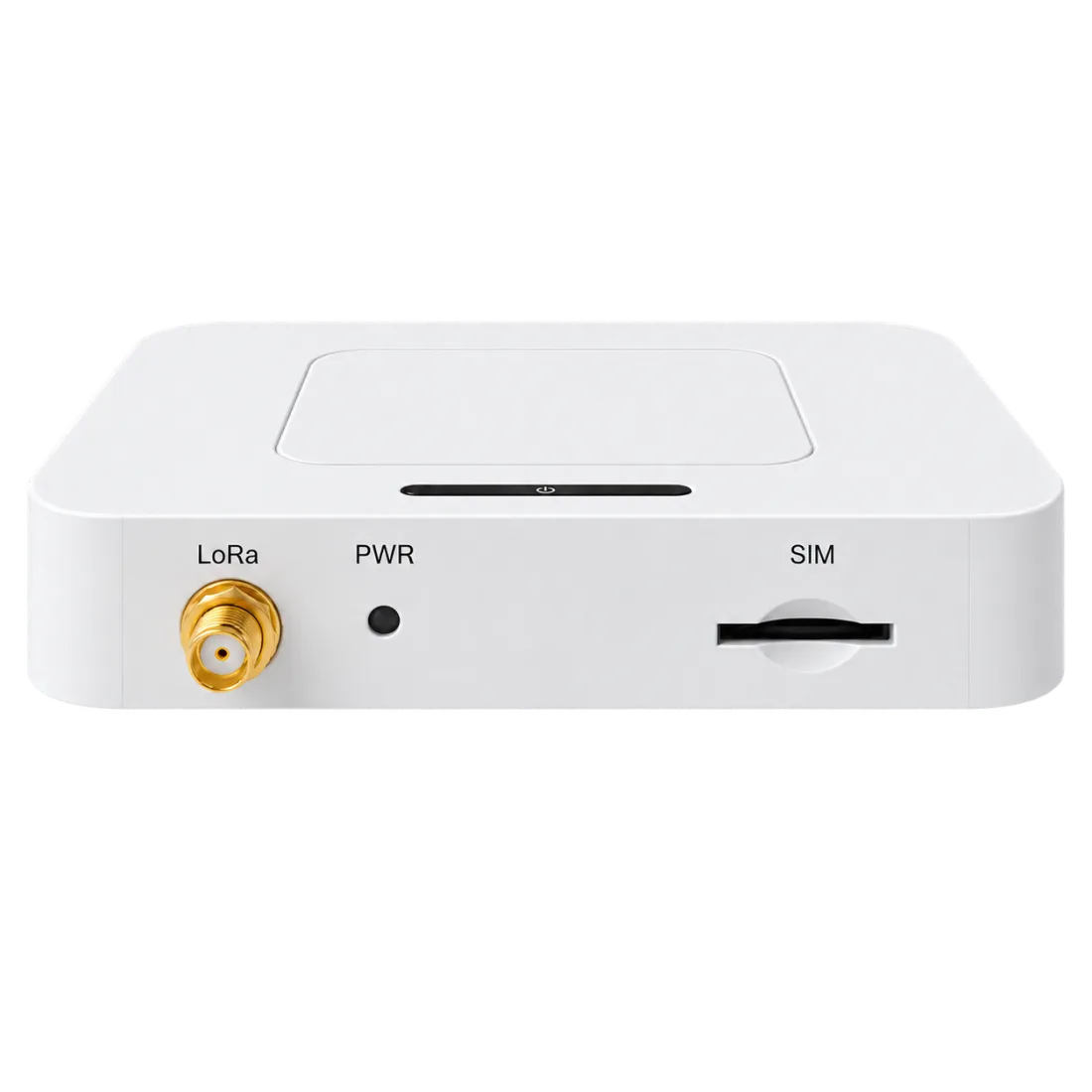

CURRENT / 01 Front view of the white GD61x indoor LoRaWAN gateway Main product · Indoor

GD61

Compact indoor LoRaWAN gateway

GD61x is an ESP32-S3 indoor gateway for standard LoRaWAN packet forwarding, local Web configuration and open-source-oriented deployments.

Offices, buildings, campuses, equipment rooms and light-industrial indoor sites

EMBEDDED THINKLINK
Not supported · connect an external ThinkLink or compatible network server
RADIO
SX1301 / SX1302 by SKU · 8 × 125 kHz frequency points · 65 channels
BACKHAUL
Ethernet / Wi-Fi / optional 4G
POWER
Type-C 5 V / DC 5–24 V · PoE on G option
ENVIRONMENT
Confirm by order · Confirm by delivery specification
MOUNTING
Desktop or rotating-bracket wall mount
SIZE / WEIGHT
Confirm by order or delivery specification · Confirm by order or delivery specification
TIMING
SNTP network time

GD614 and GD618 identify RF ranges. The A+/B- terminals are reserved in the current release and are not an operational RS-485 interface.

Open the GD61x manual ↗
CURRENT / 02 GD62 · IP67 outdoor LoRaWAN gateway Current focus · outdoor

GD62

IP67 outdoor LoRaWAN gateway

GD62 uses ESP32-S3 with 8 receive frequencies, Ethernet / Wi-Fi and optional 4G backhaul. Configure external-platform connectivity with gwTool6.

Outdoor campuses, factories and building perimeters

EMBEDDED THINKLINK
Not supported · connect an external ThinkLink or compatible network server
RADIO
SX1301 / SX1302 by configuration · 8 receive frequencies
BACKHAUL
Ethernet / Wi-Fi / optional 4G
POWER
By configuration · PoE / Type-C 5 V / DC 5–24 V
ENVIRONMENT
IP67 · -25–60°C
MOUNTING
Wall or pole mounting
SIZE / WEIGHT
164 × 124 × 50 mm · Confirm delivery specifications
TIMING
SNTP

PoE, Type-C and DC inputs depend on the delivered version. IP67 requires all interfaces to be sealed. A+/B-, if fitted, are reserved.

Read the GD62 manual ↗
CURRENT / 03 GD71 · Indoor LoRaWAN edge gateway Main product · Indoor

GD71

Indoor LoRaWAN edge gateway

GD71 includes ThinkLink for wall-mounted or free-standing indoor deployment, with DDR ≥ 512 MB, eMMC ≥ 16 GB, dual-band Wi-Fi and BLE.

Indoor campuses, offices, shopping centres, hotels and factories

EMBEDDED THINKLINK
Supported · local NS, storage, models, decoding and Dashboard
RADIO
SX1302 · Type A: 8 / Type D: 16 frequency points
BACKHAUL
Gigabit / Fast Ethernet · 4G/LTE · Wi-Fi AP/Client
POWER
PoE / PoE+ 48 V · Type-C 5 V
ENVIRONMENT
IP30 · -C: 0–65°C / -N: -20–70°C / -I: -40–70°C
MOUNTING
Wall mount or free-standing
SIZE / WEIGHT
151 × 125 × 30 mm · 0.3 kg
TIMING
NTP · Optional GPS / BDS (specify when ordering)

Confirm 8 / 16 frequency points, regional band, cellular module and -C / -N / -I temperature grade by complete ordering code. -1: max. 27 dBm; -2: max. 22 dBm; power tolerance ±2 dBm.

Read the GD71 manual ↗
CURRENT / 04 GD73 · Industrial indoor LoRaWAN gateway Main product · Industrial indoor

GD73

Industrial indoor LoRaWAN gateway

GD73 includes ThinkLink in an aluminium enclosure with RS-485 and DIN rail mounting, DDR ≥ 512 MB, eMMC ≥ 16 GB, dual-band Wi-Fi and BLE.

Industrial parks, buildings, equipment rooms, factories and smart property sites

EMBEDDED THINKLINK
Supported · local NS, storage, models, decoding and Dashboard
RADIO
SX1302 · Type A: 8 / Type D: 16 frequency points
BACKHAUL
Gigabit / Fast Ethernet · 4G/LTE · Wi-Fi AP/Client
POWER
PoE 48 V / Type-C 5 V / DC 5–24 V
ENVIRONMENT
IP30 · -C: 0–65°C / -N: -20–70°C / -I: -40–70°C
MOUNTING
DIN rail
SIZE / WEIGHT
139 × 122 × 28 mm · 0.33 kg
TIMING
GPS / BDS · NTP

Confirm 8 / 16 frequency points, regional band, cellular module and -C / -N / -I temperature grade by complete ordering code. -1: max. 27 dBm; -2: max. 22 dBm; power tolerance ±2 dBm.

Read the GD73 manual ↗
CURRENT / 05 GD72 · Protected outdoor LoRaWAN gateway Main product · Outdoor

GD72

Protected outdoor LoRaWAN gateway

GD72 is an IP67 outdoor gateway with embedded ThinkLink, DDR ≥ 512 MB, eMMC ≥ 16 GB, dual-band Wi-Fi and BLE, for pole or wall mounting.

Cities, factories, outdoor campuses and demanding field sites

EMBEDDED THINKLINK
Supported · local NS, storage, models, decoding and Dashboard
RADIO
SX1302 · Type A: 8 / Type D: 16 frequency points
BACKHAUL
Gigabit / Fast Ethernet · 4G/LTE · Wi-Fi AP/Client
POWER
PoE / PoE+ · 48 V
ENVIRONMENT
IP67 · -C: 0–65°C / -N: -20–70°C / -I: -40–70°C
MOUNTING
Pole or wall mount
SIZE / WEIGHT
164 × 124 × 50 mm · 1.2 kg
TIMING
GPS / BDS · NTP

Confirm 8 / 16 frequency points, regional band, cellular module and -C / -N / -I temperature grade by complete ordering code. -1: max. 27 dBm; -2: max. 22 dBm; power tolerance ±2 dBm.

Read the GD72 manual ↗
03 · SELECTION MATRIX

Compare the edge boundary before the enclosure

First decide whether ThinkLink must run inside the gateway, then confirm mounting, interfaces, protection and the regional SKU.

Selection itemGD61GD62GD71GD73GD72
Embedded ThinkLinkNot supported · connect an external ThinkLink or compatible network serverNot supported · connect an external ThinkLink or compatible network serverSupported · local NS, storage, models, decoding and DashboardSupported · local NS, storage, models, decoding and DashboardSupported · local NS, storage, models, decoding and Dashboard
Typical environmentOffices, buildings, campuses, equipment rooms and light-industrial indoor sitesOutdoor campuses, factories and building perimetersIndoor campuses, offices, shopping centres, hotels and factoriesIndustrial parks, buildings, equipment rooms, factories and smart property sitesCities, factories, outdoor campuses and demanding field sites
MountingDesktop or rotating-bracket wall mountWall or pole mountingWall mount or free-standingDIN railPole or wall mount
Field interfacesEthernet · reserved A+/B-Ethernet · interfaces by deliveryEthernet · Type-C · nano-SIM · SDEthernet · RS-485 · TFSealed Ethernet and external antenna ports
LoRaWAN radioSX1301 / SX1302 by SKU · 8 × 125 kHz frequency points · 65 channelsSX1301 / SX1302 by configuration · 8 receive frequenciesSX1302 · Type A: 8 / Type D: 16 frequency pointsSX1302 · Type A: 8 / Type D: 16 frequency pointsSX1302 · Type A: 8 / Type D: 16 frequency points
BackhaulEthernet / Wi-Fi / optional 4GEthernet / Wi-Fi / optional 4GGigabit / Fast Ethernet · 4G/LTE · Wi-Fi AP/ClientGigabit / Fast Ethernet · 4G/LTE · Wi-Fi AP/ClientGigabit / Fast Ethernet · 4G/LTE · Wi-Fi AP/Client
PowerType-C 5 V / DC 5–24 V · PoE on G optionBy configuration · PoE / Type-C 5 V / DC 5–24 VPoE / PoE+ 48 V · Type-C 5 VPoE 48 V / Type-C 5 V / DC 5–24 VPoE / PoE+ · 48 V
Protection and temperatureConfirm by order · Confirm by delivery specificationIP67 · -25–60°CIP30 · -C: 0–65°C / -N: -20–70°C / -I: -40–70°CIP30 · -C: 0–65°C / -N: -20–70°C / -I: -40–70°CIP67 · -C: 0–65°C / -N: -20–70°C / -I: -40–70°C
TimingSNTP network timeSNTPNTP · Optional GPS / BDS (specify when ordering)GPS / BDS · NTPGPS / BDS · NTP
Size and weightConfirm by order or delivery specification · Confirm by order or delivery specification164 × 124 × 50 mm · Confirm delivery specifications151 × 125 × 30 mm · 0.3 kg139 × 122 × 28 mm · 0.33 kg164 × 124 × 50 mm · 1.2 kg

Series configurations vary by complete ordering code and regional band. Final specifications follow the current manual and project confirmation.

04 · TWO DEPLOYMENT PATHS

Use transparent forwarding or run edge services on site

A LoRaWAN gateway first connects end devices to a network server. When a local loop is required, the same hardware can also host NS, decoding and application capabilities at the edge.

  1. 01 / RADIO

    LoRaWAN end devices

    Sensors, meters and EdgeBus collectors connect over multi-frequency LoRaWAN.

  2. 02 / GATEWAY

    GD6 / GD7

    GD6 handles radio access and backhaul. GD7 can also run the ThinkLink network server and applications on the gateway.

  3. 03 / NETWORK

    External or built-in NS

    Connect to ThinkLink, ChirpStack and TTN, or enable the built-in network server.

  4. 04 / APPLICATION

    Business systems

    Deliver data to ThinkLink Cloud, an on-site application or a customer platform.

A / COMPATIBILITY

Mainstream network-server support

Connect to ThinkLink, ChirpStack, The Things Stack / TTN and network servers using Basic Station or GWMP.

  • Basic Station LNS / CUPS
  • GWMP / Packet Forwarder
  • Dual network-server configuration
B / EDGE

Embedded ThinkLink where the site needs it

GD71, GD72 and GD73 include ThinkLink for local NS, decoding, history, thing models and dashboards. GD61 and GD62 connect to an external platform.

  • GD71 · Indoor edge
  • GD73 · industrial indoor edge
  • GD72 · IP67 outdoor edge
  • GD6 · external NS / platform
C / BACKHAUL

Multiple backhaul links

Ethernet, Wi-Fi and 4G cover different field-network conditions with connectivity checks and link selection.

  • Ethernet
  • Wi-Fi AP / backhaul
  • 4G CAT1 (confirm regional bands)
D / OPERATIONS

Configuration and remote operations

Configure locally with WebConfigure and reduce operations cost through NMS, remote upgrades and secure access.

  • WebConfigure
  • NMS and remote upgrades
  • OpenVPN and status statistics
OPEN SOURCE GATEWAY · RELEASED

GD6 · ESP32-S3

Open gateway design, built to be yours

GD6 is an open-source LoRaWAN gateway built on ESP32-S3 and SX1302. Hardware design, BOM, firmware and the Web console are now available on GitHub under the MIT license.

Open source now

LoRaWAN network servers

ThinkLinkChirpStackThe Things Network (TTN)

Gateway protocols

Semtech UDPMQTT bridgeLoRa Basics Station

Connectivity & power

EthernetWi-Fi4G

Open-source package

Hardware design filesBOMSoftware source code
Browser configuration

Configure network, radio, LNS, updates and diagnostics through the built-in Web console.

The official repository publishes the reference hardware, BOM, firmware, frontend and MIT license. Open the GD6 product page
05 · DOCUMENTATION

Continue from product choice to deployment

Read the product manual first, then use the matching gwTool guide and network-server integration instructions.

PRODUCT / GD61

GD61x product manual

Models, interfaces, power, installation and ordering rules.

 PRODUCT / GD62

Read the GD62 manual

GD62 outdoor protection, port sealing, power and configuration.

 PRODUCT / GD71

Read the GD71 manual

V1.4 · Indoor installation, 8/16 frequency points, power and optional GPS.

 PRODUCT / GD73

GD73 product manual

V1.3 · GD73 RS-485, DIN rail mounting, power and embedded ThinkLink.

 PRODUCT / GD72

GD72 product manual

V1.3 · GD72 outdoor installation, regional models and embedded ThinkLink.

 MODULE / PMC51x

Read the PMC51x manual

PMC51x bands, Mini-PCIe pins, SPI, PPS and reset interfaces.

 CONFIG / GD6

gwTool6 configuration guide

Networks, LNS, radio, logs, OTA and recovery for the GD6 series.

 CONFIG / GD7

gwTool7 administrator guide

GD7 configuration, embedded ThinkLink and operations.

 NETWORK / CHIRPSTACK

Connect to ChirpStack

Basic Station connection paths for gwTool6 and gwTool7.

 NETWORK / TTN

Connect to The Things Network

Basic Station connection paths for gwTool6 and gwTool7.
06 · DIRECT ANSWERS

Gateway selection, answered directly

These answers summarize the decisive differences and link back to the maintained manuals.

Which gateways include ThinkLink?

GD71, GD72 and GD73 include complete ThinkLink for indoor, IP67 outdoor and industrial indoor DIN rail deployments respectively. GD6 connects to external ThinkLink or another compatible network server.

Read the GD7 configuration guide ↗

What is the main difference between GD6 and GD7?

GD6 uses ESP32-S3 for lightweight forwarding and open designs. GD7 runs Ubuntu and can host complete ThinkLink on the gateway. Select the model by installation, interfaces and power.

Read the GD6 configuration guide ↗

Which gateway should I use outdoors?

Choose GD62 for an external platform or GD72 for embedded ThinkLink. Both are IP67; power, temperature and interfaces must follow the model-specific manual and ordering configuration.

Read the GD72 manual ↗

Where can I buy PMC51 modules for the GD6 open design?

Contact ManThink to purchase the PMC51x radio module. PMC514 covers the 400 MHz family; PMC518 covers 800 MHz and higher bands. Provide regional bands, quantity and host interface requirements to confirm the model.

Read the PMC51x manual ↗

Need to confirm regional bands, capacity or installation conditions?

Pricing, stock, and delivery are determined by Taobao. For project orders, share the deployment location, device count, and backhaul network with us first.

Visit the official Taobao store Talk to a project specialist
